Thin Signal Surge Protection Device Gives Automation Professionals Peace of Mind

In today's era of rapid information technology development, the application of various electronic devices is becoming more widespread. Lower operating voltage and lower overvoltage tolerance make them particularly sensitive to overvoltage in system signals. This is especially true in the field of automation, which involves a large amount of signal transmission and thus requires the installation of numerous signal surge protection device for transient overvoltage protection.

While ensuring surge protection performance, SPD size becomes increasingly important. The more SPD units that can be installed in a single control cabinet, the fewer control cabinets are needed, thereby reducing overall costs.

There is such asignal SPD with good performance, samll size, high quality:

• Compact and space-saving

• Great performance

• User-friendly

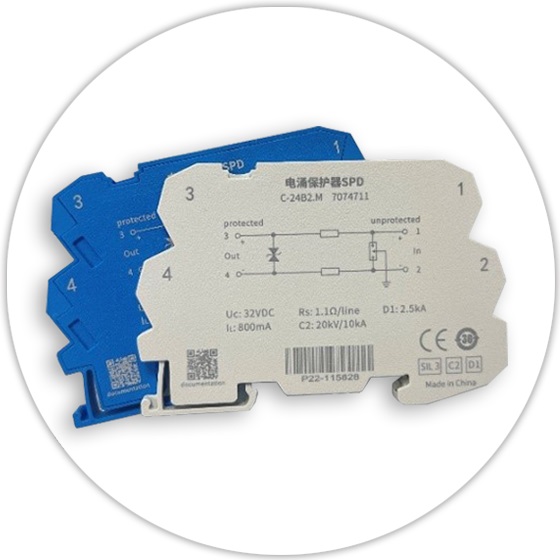

CHENZHU C Series Slim Type Signal Surge Protection Device Offers High Flow Capacity and Outstanding Performance

CHENZHU C series slim type signal surge protection device complies with the SH/T3164-2021 petrochemical instrument system lightning protection design specification

The basic parameters of signal-type surge protectors should meet the specifications in Table 7.3.

Table 7.3 Basic parameters of signal-type surge protectors

CHENZHU C series slim type signal surge protection device can reach

• Smaller product size

• But high lightning protection capability

• Nominal discharge current In10kA

• Type test report, SIL3 and multiple authoritative certifications for assured applications

CHENZHU C Series Slim Type Signal Surge Protection Device Is Compact and Space-Saving

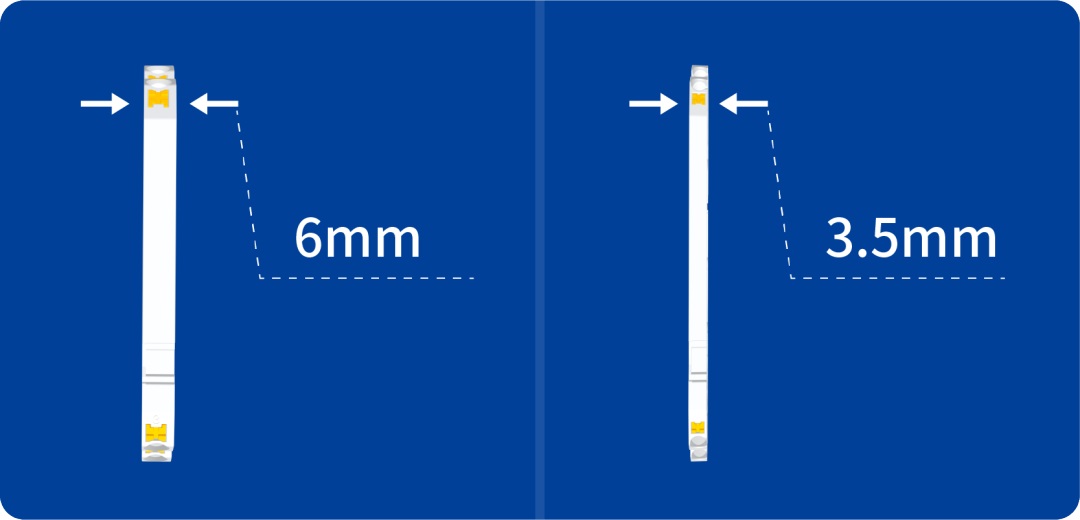

• As slim as 6.0mm

• From slim → to slimmer

• Thinnest is only3.5mm

• 2 thickness options to choose from

CHENZHU C-Series Slim Signal Surge Protection Device with Intimate Design

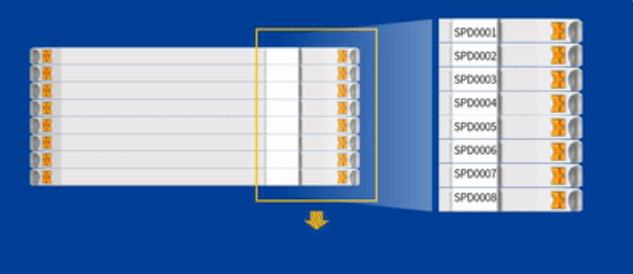

Flexibly Customizable Identification Strip for Convenient Labeling

CHENZHU C-Series Slim Signal Surge Protector, Easy Installation, Efficient and Labor-Saving

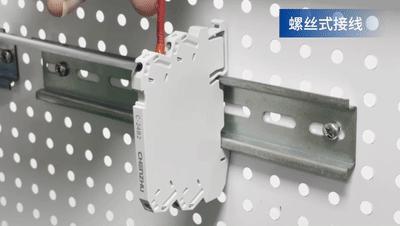

• 35mm DIN rail mount

• Direct grounding through rail

• Option for screw-type wiring, stable and reliable

• Option for plug-in wiring, completes in one action




CHENZHU C-Series Slim Signal Surge Protection Device Has Comprehensive Specifications, Easily Adaptable

In explosive atmospheres, intrinsically safe SPD options are available.

It can protect RS-232, RS-485, RTD, TC, AI, AO, DI, DO, and other signal interfaces.
