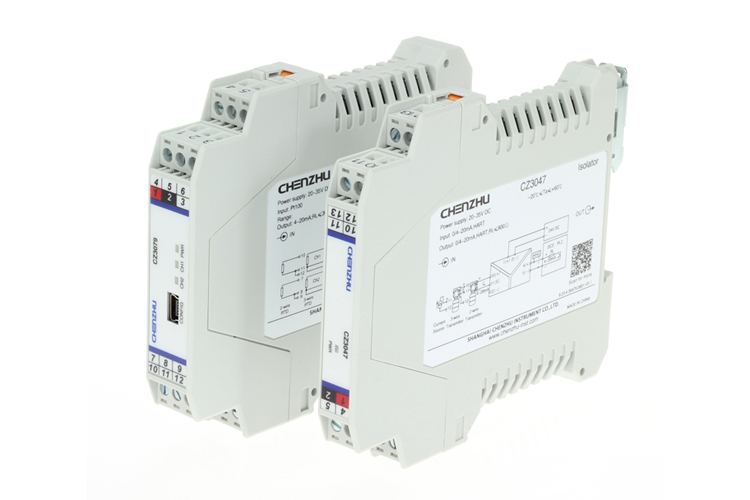

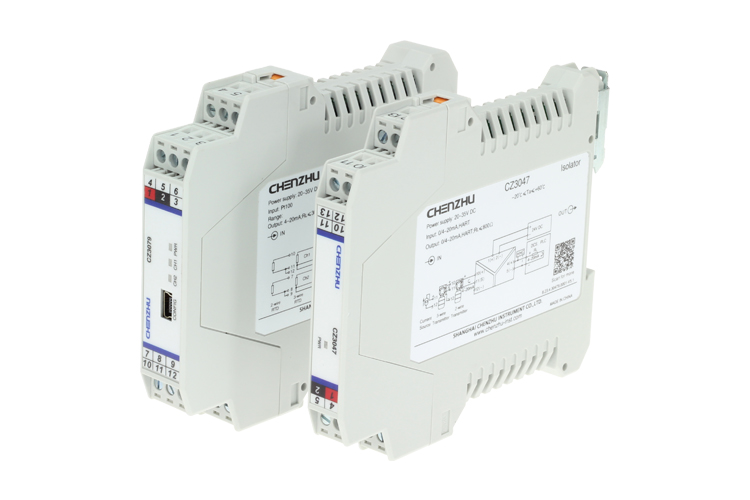

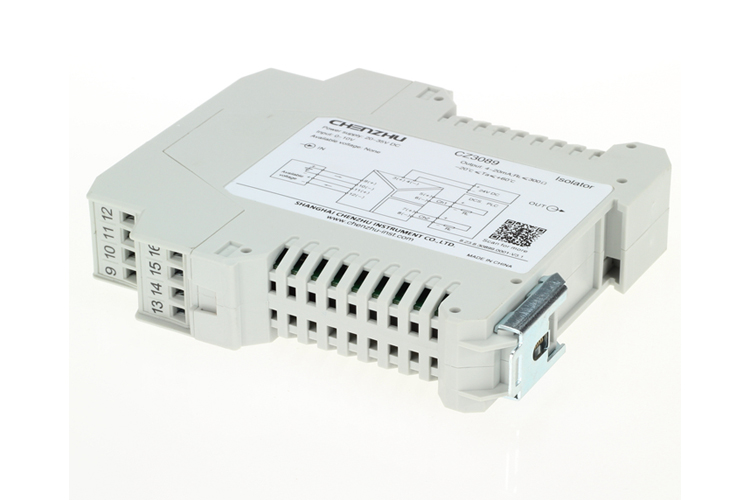

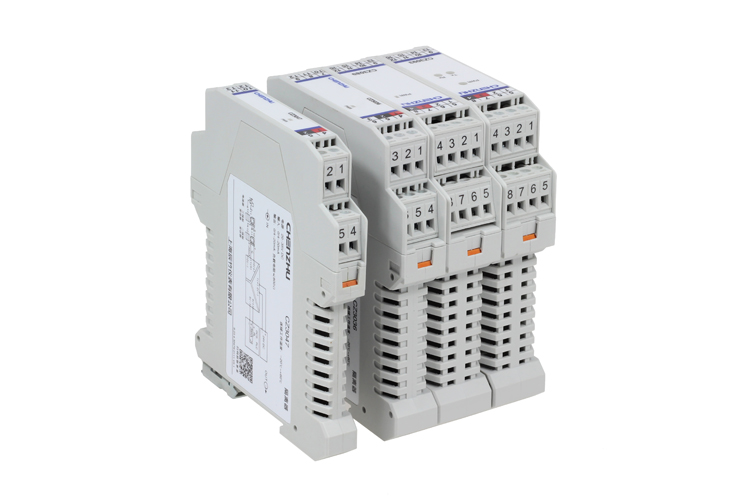

CZ3000 Analogue Signal Conditioner

Analogue input, output isolator. Conversion accuracy is as high as 0.1%F.S.. Signal isolator connects 2-wire Transmitter, 3-wire Transmitter, Current Source instruments and control systems, match and transform signals.


CZ3000 signal conditioning module resists various kinds of interference via reliable interference preventing technology, which are used in industry process control system, ensuring systems and instruments working stably and reliably in complex electromagnetic environment.

Advantages of CZ3000 Analogue Signal Conditioner

  • 24V DC independent power supply

  • 0/4~20mA current input/output

  • 0/4~20mA current source output/ sink mode output

  • Output load up to 800Ω

Parameter of CZ3000 Analogue Signal Conditioner


CZ3047
1/1
CZ3035
1/2
CZ3036
2/2
Input Current0/4~20m0/4~20m0/4~20m
Input Impedance≤50Ω≤50Ω≤50Ω
Distribution Voltage/Max. Current17.5~25V/<35mA17.5~25V/<35mA17.5~25V/<35mA
Output Current0/4~20mA0/4~20mA0/4~20mA
Load Resistance(Current output)RL≤800ΩRL≤300ΩRL≤300Ω
Output Voltage0/1~5V,0/2~10V0/1~5V,0/2~10V0/1~5V,0/2~10V
Load Resistance(Voltage output)RL≥330kΩ(0/1~5V)
RL≥660kΩ(0/2~10V)
RL≥330kΩ(0/1~5V)
RL≥660kΩ(0/2~10V)
RL≥330kΩ(0/1~5V)
RL≥660kΩ(0/2~10V)
Supply Voltage20~35V DC20~35V DC20~35V DC
Power Reverse ProtectionSupportSupportSupport
Current Consumption(Supply voltage:24V )≤60mA≤75mA≤100mA
Transmission Accuracy0.1%F.S.(Typical:0.05%F.S.)0.1%F.S.(Typical:0.05%F.S.)0.1%F.S.(Typical:0.05%F.S.)
Temperature Drift0.005%F.S./℃0.005%F.S./℃0.005%F.S./℃
Response Time (0~90%)≤0.5 ms≤0.5 ms≤0.5 ms
Dielectric Strength1500V AC;1min1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ; 500V DC≥100MΩ; 500V DC≥100MΩ; 500V DC
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃-20℃~+60℃
Suitable Field Apparatus2-or 3-wire transmitter,current source2-or 3-wire transmitter,current source2-or 3-wire transmitter,current source



CZ3047T
1/1
CZ3035T
1/2
CZ3036T
2/2
Input Current0/4~20mA0/4~20mA0/4~20mA
Distribution Voltage17.5~25V17.5~25V17.5~25V
Max. Current<35mA<35mA<35mA
Output Current0/4~20mA0/4~20mA0/4~20mA
Ext.Source Voltage(Ue)12~30V12~30V12~30V
Load ResistanceRL≤(Ue-5)/0.02RL≤(Ue-5)/0.02RL≤(Ue-5)/0.02
Supply Voltage20~35V DC20~35V DC20~35V DC
Power Reverse ProtectionSupportSupportSupport
Current Consumption(Supply voltage:24V )≤40mA≤45mA≤80mA
Transmission Accuracy0.1%F.S.(Typical:0.05%F.S.)0.1%F.S.(Typical:0.05%F.S.)0.1%F.S.(Typical:0.05%F.S.)
Temperature Drift0.005%F.S./℃0.005%F.S./℃0.005%F.S./℃
Response Time (0~90%)≤0.5 ms≤0.5 ms≤0.5 ms
Dielectric Strength1500V AC;1min1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ; 500V DC≥100MΩ; 500V DC≥100MΩ; 500V DC
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃-20℃~+60℃
Suitable Field Apparatus2-or 3-wire transmitter,current source2-or 3-wire transmitter,current source2-or 3-wire transmitter,current source



CZ3067
1/1
CZ3038
2/2
Input Signal0/4~20mA0/4~20mA
Input Voltage Drop≤2V≤2V
Max. Input Current<30mA<30mA
Output Current/Load Resistance0(4)~20mA / RL≤800Ω0(4)~20mA / RL≤800Ω
Max.Output Current<30mA<30mA
Output Voltage/Load Resistance0(1)~5V / RL≥330kΩ0(1)~5V / RL≥330kΩ
Supply Voltage20~35V DC20~35V DC
Power Reverse ProtectionSupportSupport
Current Consumption(Supply voltage:24V)≤40mA≤65mA
Transmission Accuracy0.1%F.S.(Typical:0.05%F.S.)0.1%F.S.(Typical:0.05%F.S.)
Temperature Drift0.005%F.S./℃0.005%F.S./℃
Response Time (0~90%)≤2ms≤2ms
Dielectric Strength1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ; 500V DC≥100MΩ; 500V DC
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃
Suitable Field Apparatus2-wire valve positioner, electrical converter2-wire valve positioner, electrical converter

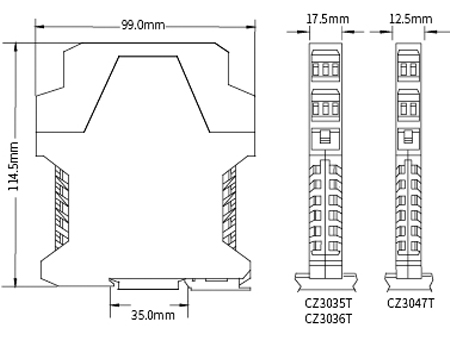

Dimensions of CZ3000 Analogue Signal Conditioner


CZ3000 Analogue Signal Conditioner

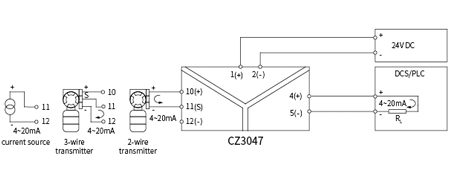

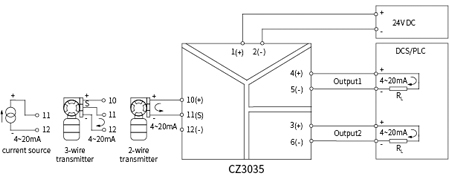

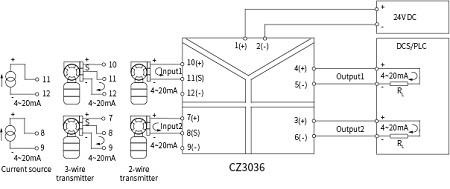

Typical Applications of CZ3000 Analogue Signal Conditioner

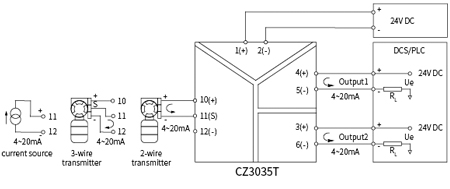

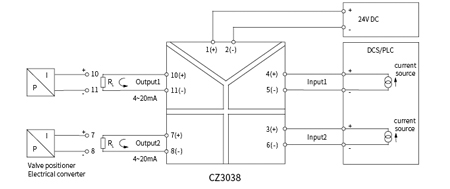

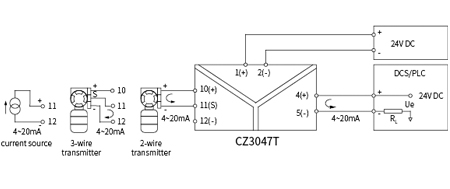

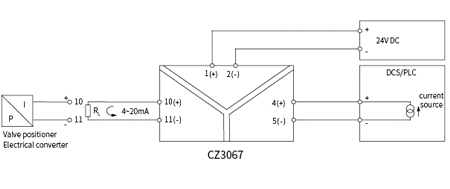

CZ3000 Analogue Signal ConditionerCZ3000 Analogue Signal Conditioner

CZ3000 Analogue Signal ConditionerCZ3000 Analogue Signal Conditioner

CZ3000 Analogue Signal ConditionerCZ3000 Analogue Signal Conditioner
