CZ3000 Analogue Signal Conditioner Loop Power

Analogue input, output isolator.  It can provide the transmitter, transfer current signal generated by transmitter from field side to control room side, can also transfer current signal from control room side to field side and drive equipments like actuator in field.


This loop powered isolator allows bi-directional transmission of HART communication signal, and is suitable for using loop-powered DCS, PLC systems.

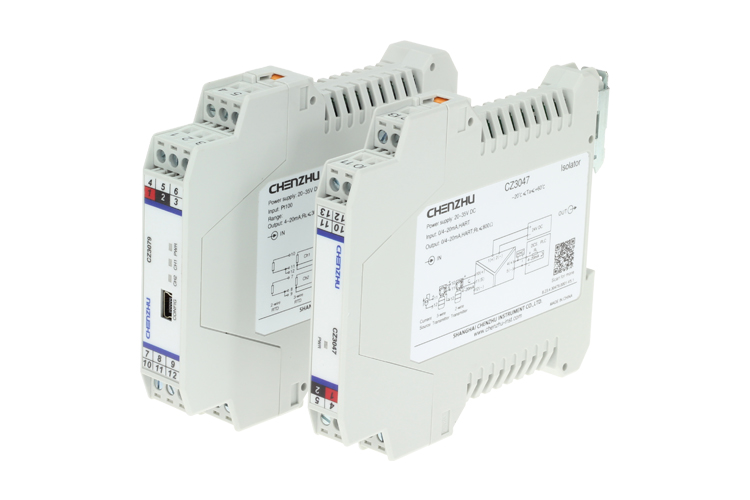

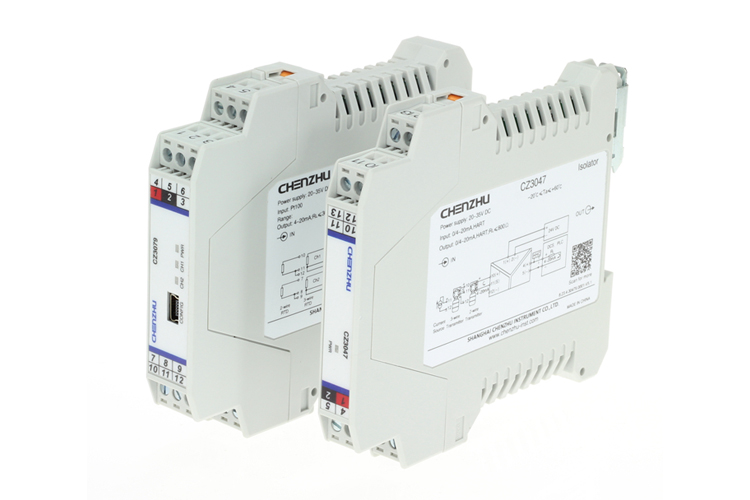

  • CZ3000 Analogue Signal Conditioner Loop Power
  • CZ3000 Analogue Signal Conditioner Loop Power
  • CZ3000 Analogue Signal Conditioner Loop Power
  • CZ3000 Analogue Signal Conditioner Loop Power
  • CZ3000 Analogue Signal Conditioner Loop Power
  • CZ3000 Analogue Signal Conditioner Loop Power

Advantages of CZ3000 Analogue Signal Conditioner Loop Power

  • 24V DC Loop powered

  • Suitable for analog input and analog output

  • Support HART communication

Parameter of CZ3000 Analogue Signal Conditioner Loop Power


1/1:CZ3031
2/2:CZ3032
Application 1: Analog Input
1/1:CZ3031
2/2:CZ3032
Application 2: Analog Output
Input Current4~20mA(HART)4~20mA(HART)
Voltage DropUd≤6VUd≤6V
Distribution VoltageUo≥Ue-RL×0.02-6
Output Current4~20mA(HART)4~20mA(HART)
Load ResistanceRL ≥250Ω(HART)RL ≤(Ui -6)/0.02
Loop Supply Voltage(Ue)20~30V DC20~30V DC
Power Reverse ProtectionSupportSupport
Power Dissipation0.1W0.1W
Transmission Accuracy0.4%F.S.0.2%F.S.
Temperature Drift0.01%F.S./℃0.01%F.S./℃
Response Time (0~90%)≤0.5 ms≤0.5 ms
Dielectric Strength1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ≥100MΩ
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃
Suitable Field Apparatus2-wire transmitter2-wire Valve positioner/ Electrical converter



CZ3065T
1/1
CZ3066T
2/2
Input Current4~20mA4~20mA
Input Impedance≤100Ω≤100Ω
Output Current4~20mA4~20mA
Voltage Drop≤14V≤14V
Load ResistanceRL≤(Ue-14)/0.02RL≤(Ue-14)/0.02
Loop Supply Voltage(Ue)20~30V DC20~30V DC
Power Reverse ProtectionSupportSupport
Transmission Accuracy0.2%F.S.0.2%F.S.
Temperature Drift0.01%F.S./℃0.01%F.S./℃
Response Time (0~90%)≤0.5 ms≤0.5 ms
Dielectric Strength1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ; 500V DC≥100MΩ; 500V DC
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃
Suitable Field Apparatuscurrent sourcecurrent source


Dimensions of CZ3000 Analogue Signal Conditioner Loop Power


Z3000 Analogue Signal Conditioner Loop Power

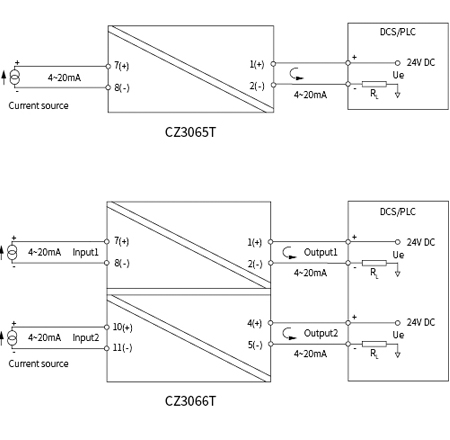

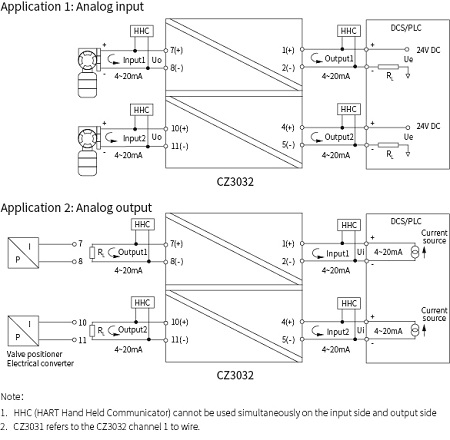

Typical Applications of CZ3000 Analogue Signal Conditioner Loop Power


Z3000 Analogue Signal Conditioner Loop PowerZ3000 Analogue Signal Conditioner Loop Power
