GS4000-EX Series Backplane Intrinsic Safety Barrier

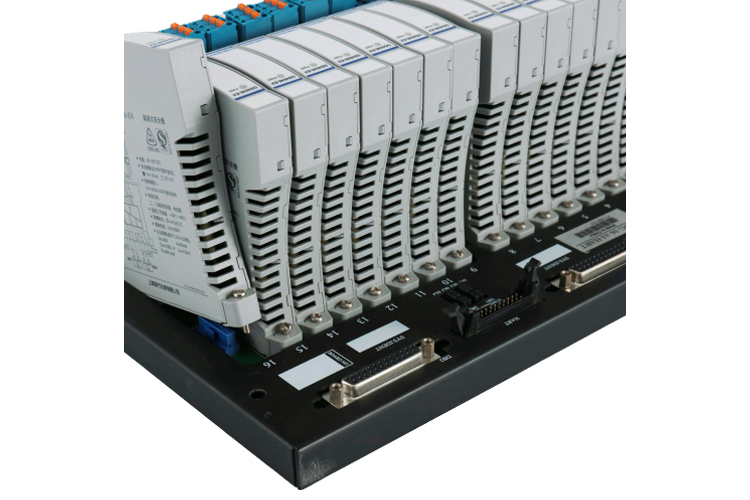

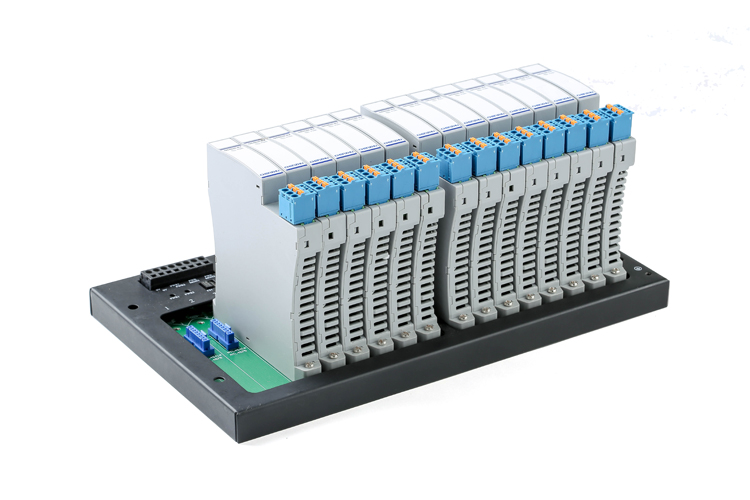

GS4000-EX range of backplane mounting intrinsic safety barrier provides an innovative solution for protecting electrical signal. It connected to the socket on the bottom plate through the plug at the bottom of the isolation barrier, and then connected to the I/O card through the customized socket and prefabricated cable on the bottom plate.


This method saves a lot of wiring work for isolation barrier power distribution and signal output and also prevents a lot of troubleshooting work due to negligence in wiring errors. Centralized wiring of this intrinsically safe electrical equipment makes the installation cabinet more beautiful, suitable for mass installation projects. The bottom plug interface of the isolation barrier can be interchanged with MTL products of the same type.

Features & Advantages of GS4000-EX Series Backplane Intrinsic Safety Barrier

  • The built-in redundant power supply circuit on the backplane accepts 2 independent 24VDC power supplies and has a power supply status indication and power failure alarm output contacts.

  • The backplane provides a variety of sockets, which are matched with prefabricated cables from different DCS manufacturers to realize a simple connection of the control system.

  • Double-sided heat dissipation grids of the safety and automation system provide a better ventilation effect and realize smooth ventilation inside the module.

  • Spring-type terminal block has strong vibration resistance and fast wiring.

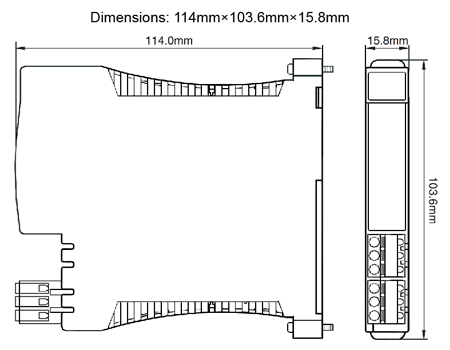

Dimensions of GS4000-EX Series Backplane Intrinsic Safety Barrier


GS4000-EX Series Backplane Intrinsic Safety Barrier

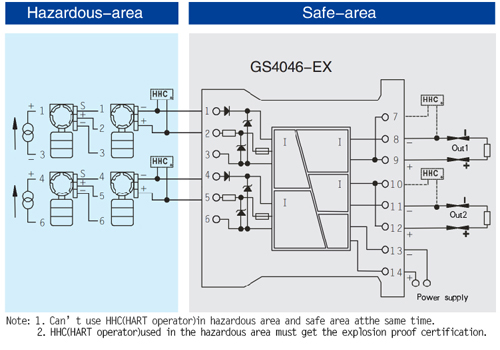

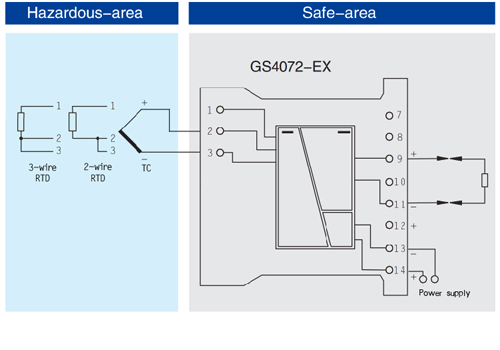

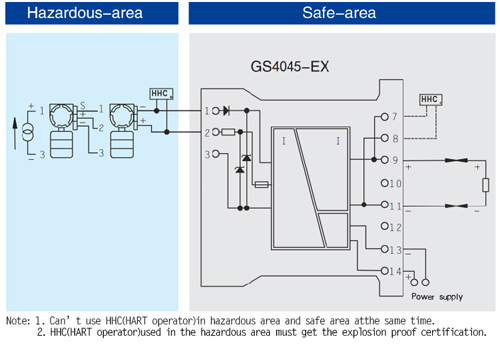

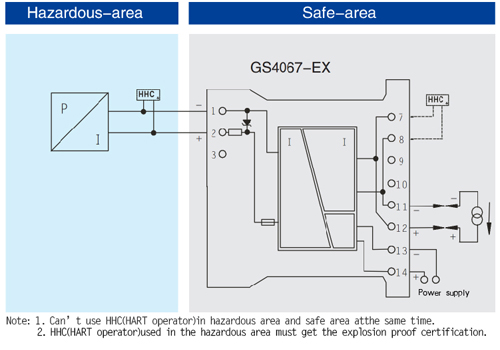

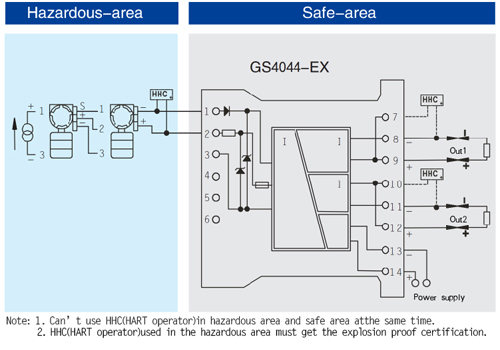

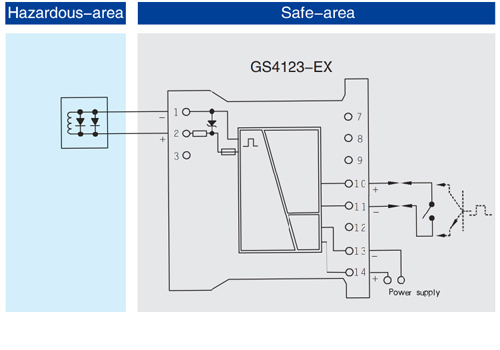

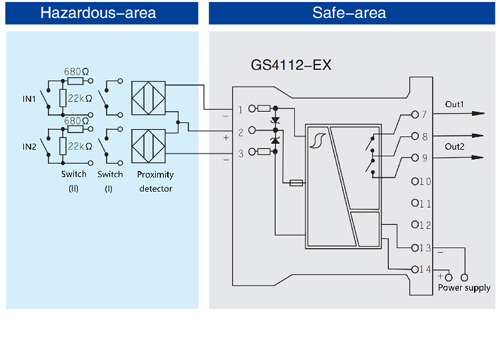

Typical Applications of GS4000-EX Series Backplane Intrinsic Safety Barrier


GS4000-EX Series Backplane Intrinsic Safety BarrierGS4000-EX Series Backplane Intrinsic Safety Barrier

GS4000-EX Series Backplane Intrinsic Safety BarrierGS4000-EX Series Backplane Intrinsic Safety Barrier

GS4000-EX Series Backplane Intrinsic Safety BarrierGS4000-EX Series Backplane Intrinsic Safety Barrier

GS4000-EX Series Backplane Intrinsic Safety Barrier
