CZ2000 Voltage/Current Input Signal Conditioner

CZ2083 is a multifunctional DC signal input conversion isolator, independent power supply, and the power supply, input and output are isolated from each other.


The input and output range are fixed, customers need to specify the input and output range when ordering. Convert field current or voltage signal linearly into corresponding current or voltage signal and output. And CZ2083 by CHENZHU, a reliable signal isolator supplier, is customized model with DIP switch.

Advantages of CZ2000 Voltage/Current Input Signal Conditioner

  • 1-channel signal conditioner

  • 24V DC  loop powered

  • Configurable by DIP switches (CZ2083.A)

  • Ultra-slim housing width 7.6mm

Parameter of CZ2000 Voltage/Current Input Signal Conditioner


CZ2083CZ2083.A
DIP configurable
ConfigurationNot supportVia DIP switches
Input Signal0~20mA,4~20mA
0~5V,1~5V,0~10V,2~10V
0~20mA,4~20mA
0~5V,1~5V,0~10V,2~10V
ConfigurationNot supportVia DIP switches
Output Signal0~20mA,4~20mA
0~5V,1~5V,0~10V,2~10V
0~20mA,4~20mA
0~5V,1~5V,0~10V,2~10V
Supply Voltage20~35V DC20~35V DC
Power Reverse ProtectionSupportSupport
Current Consumption(Supply voltage:24V )≤45mA≤45mA
Transmission Accuracy0.1%F.S.0.1%F.S.
Temperature Drift0.01%F.S./℃0.01%F.S./℃
Response Time (0~90%)≤0.1s≤0.1s
Dielectric Strength1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ≥100MΩ
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃
Suitable Field Apparatuscurrent source ,voltage sourcecurrent source ,voltage source

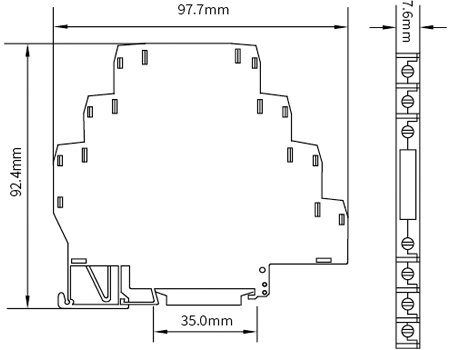

Dimensions of CZ2000 Voltage/Current Input Signal Conditioner


CZ2000 Voltage/Current Input Signal Conditioner

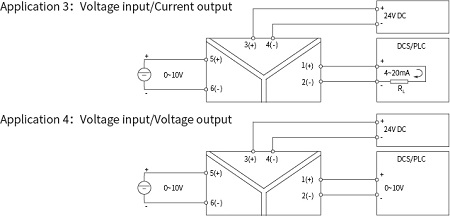

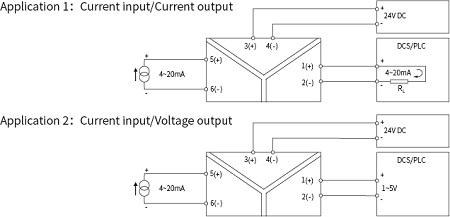

Typical Applications of CZ2000 Voltage/Current Input Signal Conditioner


CZ2000 Voltage/Current Input Signal ConditionerCZ2000 Voltage/Current Input Signal Conditioner
