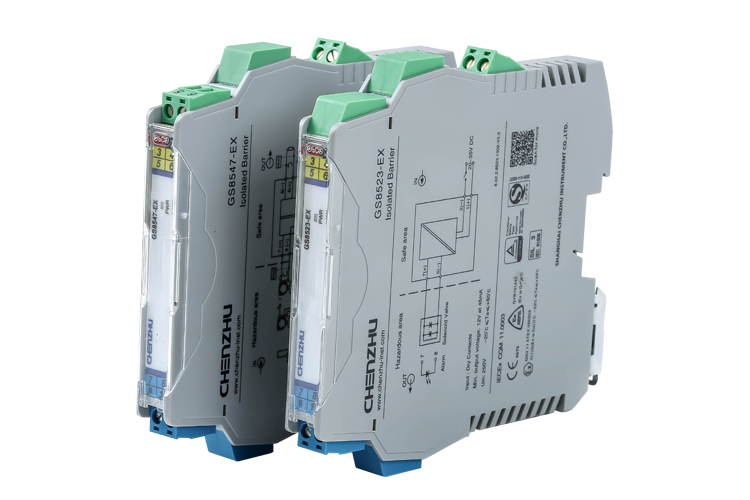

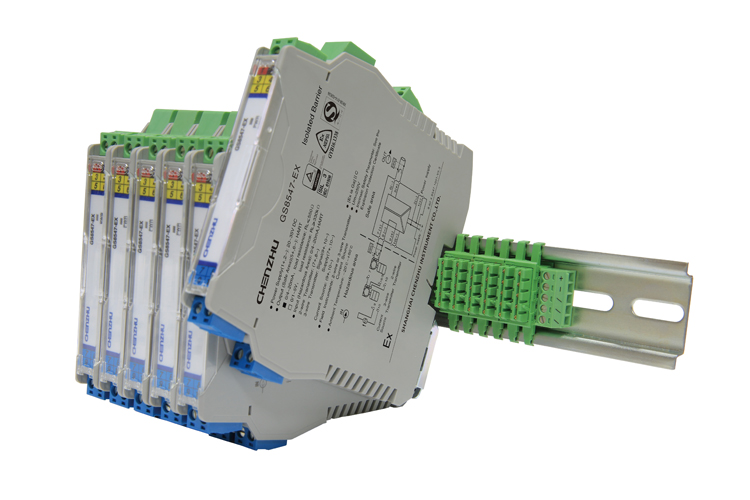

GS8500-EX Digital Intrinsic Safety Barrier Loop Power

Digital output isolated barriers, control the 12V/35mA and 12V/45mA power supply to hazardous area. This product is suitable for driving IS devices such as solenoid valves, LED and some other low-power loads located in the hazardous area.


The input and output are each galvanically isolated and allow the control switch to directly connect to either side of 24V DC power supply loop circuit. This galvanic barrier product is loop-powered.

Advantages of GS8500-EX Digital Intrinsic Safety Barrier Loop Power

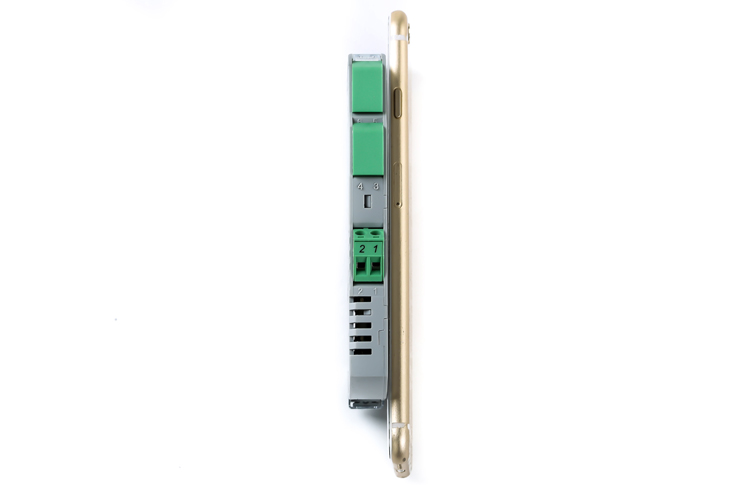

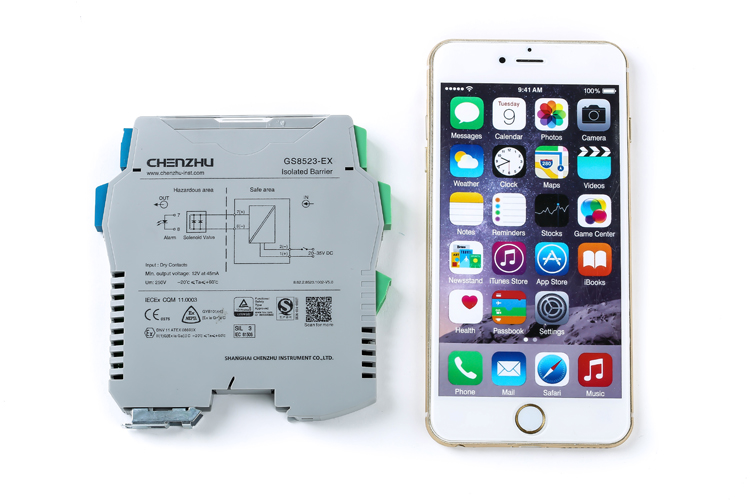

  • Ultra-thin 12.5mm

  • High reliability and precision

  • Strong EMC performance

  • G3 anti-corrosion

  • Flexible power mode

Parameter of GS8500-EX Digital Intrinsic Safety Barrier Loop Power



1/1:GS8521-EX1/1:GS8523-EX1/1:GS8525-EX
Loop Supply Voltage(Ue)20~35V DC20~35V DC20~35V DC
Input signalWet ContactWet ContactWet Contact
Output Signal12V/35mA12V/45mA12V/60mA
Current Consumption≤65mA≤75mA≤95mA
Open-circuit Voltage22V~24V22V~24V22V~24V
Response Time≤20ms≤20ms≤20ms
Ambient Temperature-20℃~+60℃-20℃~+60℃-20℃~+60℃
WeightApprox. 100gApprox. 100gApprox. 100g

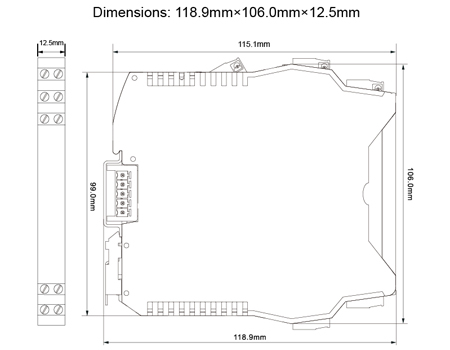

Dimensions of GS8500-EX Digital Intrinsic Safety Barrier Loop Power


GS8500-EX Digital Intrinsic Safety Barrier Loop Power

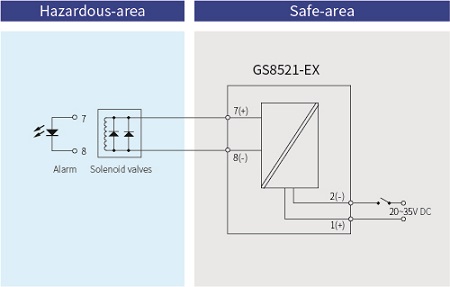

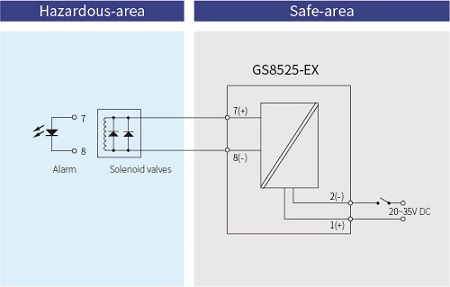

Typical Applications of GS8500-EX Digital Intrinsic Safety Barrier Loop Power


GS8500-EX Digital Intrinsic Safety Barrier Loop Power   GS8500-EX Digital Intrinsic Safety Barrier Loop Power

GS8500-EX Digital Intrinsic Safety Barrier Loop Power
