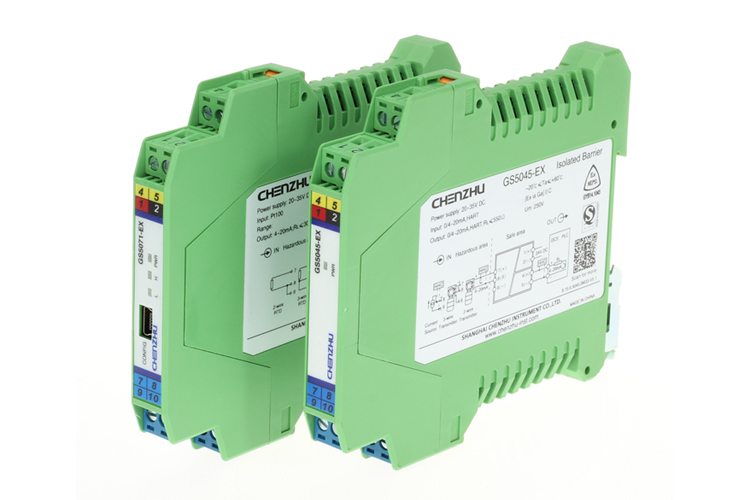

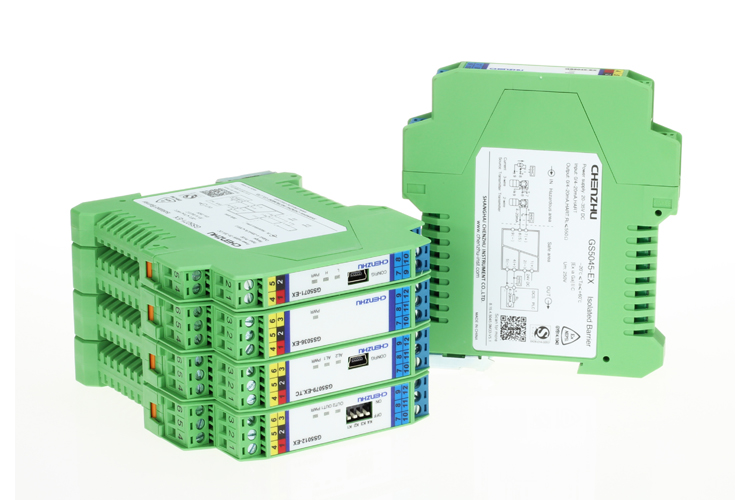

GS5000-EX Digital Intrinsic Safety Barrier Loop Power

Digital output isolated barriers, control the 12V/45mA power supply to hazardous area. This product is suitable for driving IS devices such as solenoid valves, LED and some other low-power loads located in the hazardous area.


The input and output are each galvanically isolated, and this intrinsically safe barrier is loop-powered.

  • GS5000-EX Digital Intrinsic Safety Barrier Loop Power
  • GS5000-EX Digital Intrinsic Safety Barrier Loop Power
  • GS5000-EX Digital Intrinsic Safety Barrier Loop Power
  • GS5000-EX Digital Intrinsic Safety Barrier Loop Power
  • GS5000-EX Digital Intrinsic Safety Barrier Loop Power
  • GS5000-EX Digital Intrinsic Safety Barrier Loop Power

Advantages of GS5000-EX Digital Intrinsic Safety Barrier Loop Power

  • Ultra-thin 12.5mm

  • High reliability and precision

  • 3-way galvanic accuracy

  • High-density installation

  • Variety of specifications and models

Parameter of GS5000-EX Digital Intrinsic Safety Barrier Loop Power


1/1:GS5023-EX
2/2:GS5024-EX
Loop Supply Voltage20~35V DC
Current Consumption≤75mA (GS5023-EX)
≤160mA (GS5024-EX)
Open circuit voltage22V~24V
Input signalWet Contact
Output signal12V/35mA
Relative humidity10%~90%
Response time≤20ms
Ambient TemperatureAmbient Temperature
WeightApprox. 100g

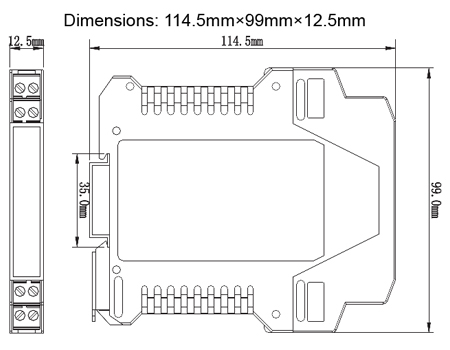

Dimensions of GS5000-EX Digital Intrinsic Safety Barrier Loop Power


GS5000-EX Digital Intrinsic Safety Barrier Loop Power

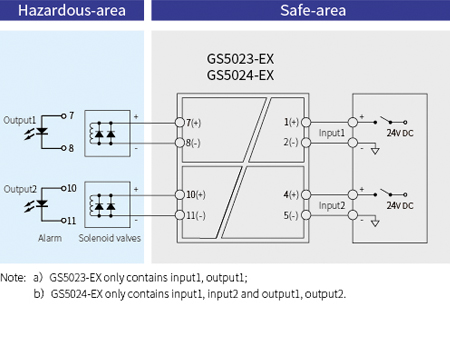

Typical Applications of GS5000-EX Digital Intrinsic Safety Barrier Loop Power


GS5000-EX Digital Intrinsic Safety Barrier Loop Power
