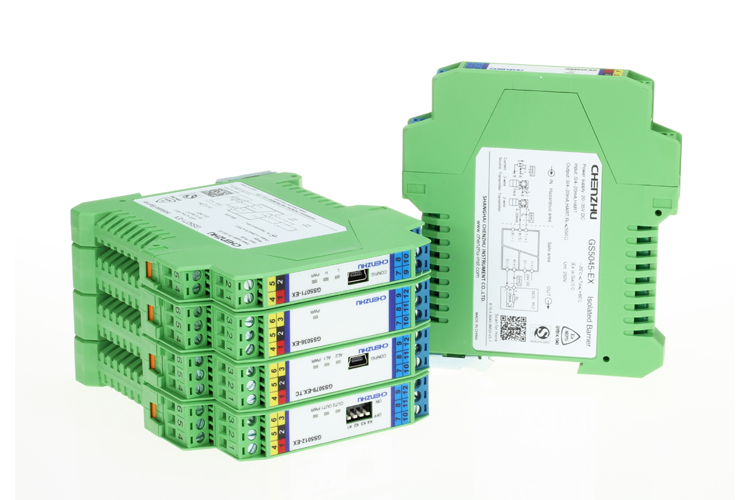

GS5000-EX Temperature Converter Intrinsic Safety Barrier

RTD/ TC/mV input isolated barriers, convert RTD/TC/mV signals in the hazardous area into current or voltage signals and output to a safe area. It integrates the CJC function in the terminal and can be configured by computer.


The IS barrier product needs an independent power supply and galvanic isolation among power supply, input, and output.

Advantages of GS5000-EX Temperature Converter Intrinsic Safety Barrier

  • Ultra-thin 12.5mm

  • High reliability and precision

  • 3-way galvanic accuracy

  • High-density installation

  • Variety of specifications and models

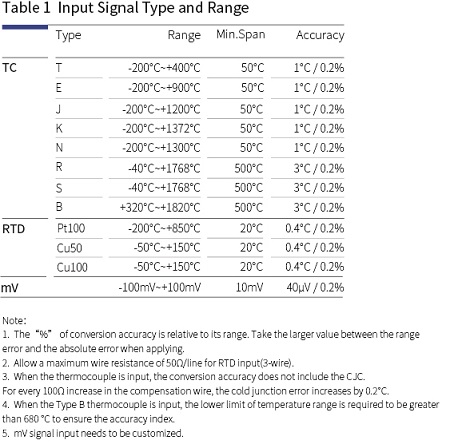

Parameter of GS5000-EX Temperature Converter Intrinsic Safety Barrier


1/1:GS5071-EX1/1:GS5072-EX1/2:GS5076-EX
2/2:GS5079-EX
1/2:GS5076-EX.TC
2/2:GS5079-EX.TC
Supply Voltage20~35V DC20~35V DC20~35V DC20~35V DC
Current Consumption≤35mA≤35mA≤55mA≤55mA
Temperature drift0.01%F.S./℃0.01%F.S./℃0.01%F.S./℃0.01%F.S./℃
Input signalThermal resistance PT100T; E; J; K; N; R'S; B; mVPt100;Cu50;Cu100 (RTD)T; E; J; K; N; R'S; B; mV
Output signal0/4~20mA;0/1~5V0/4~20mA;0/1~5V0/4~20mA;0/1~5V0/4~20mA;0/1~5V
Relative humidity10%~90%10%~90%10%~90%10%~90%
Response time≤1s≤1s≤1s≤1s
Ambient Temperature-20℃~+60℃-20℃~+60℃-20℃~+60℃-20℃~+60℃
WeightApprox. 100gApprox. 100gApprox. 150gApprox. 150g

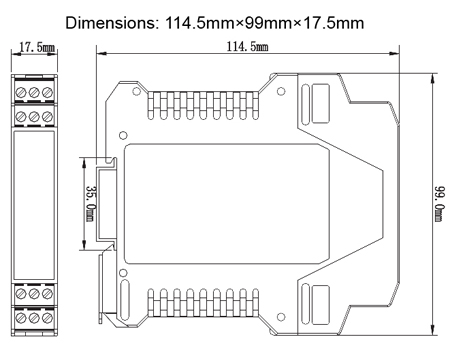

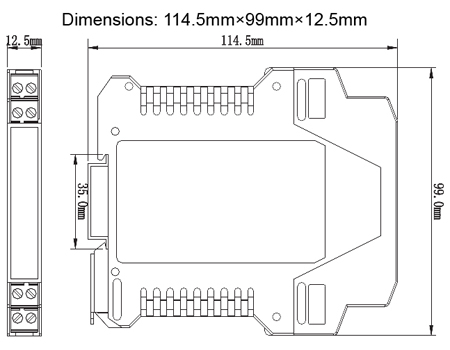

Dimensions of GS5000-EX Temperature Converter Intrinsic Safety Barrier


GS5000-EX Temperature Converter Intrinsic Safety BarrierGS5000-EX Temperature Converter Intrinsic Safety Barrier

GS5000-EX Temperature Converter Intrinsic Safety Barrier

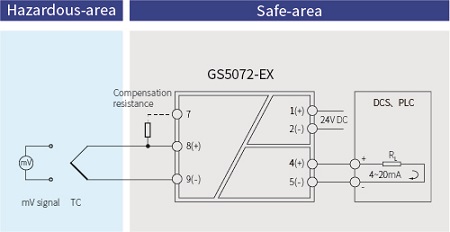

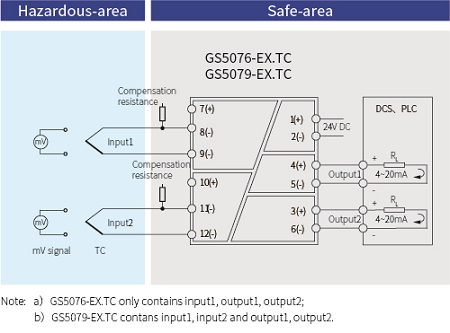

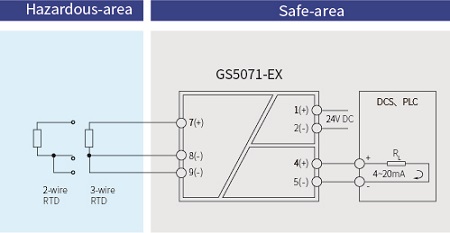

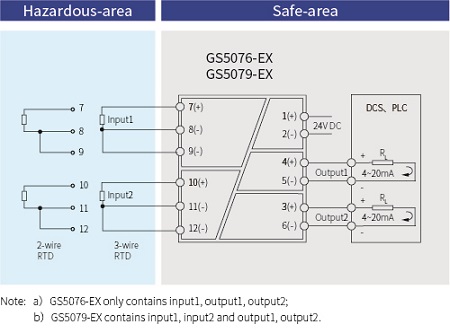

Typical Applications of GS5000-EX Temperature Converter Intrinsic Safety Barrier


GS5000-EX Temperature Converter Intrinsic Safety Barrier   GS5000-EX Temperature Converter Intrinsic Safety Barrier

GS5000-EX Temperature Converter Intrinsic Safety Barrier   GS5000-EX Temperature Converter Intrinsic Safety Barrier
