GS8200-EX Analogue To RS485 Intrinsic Safety Barrier

Analog isolated barrier, with single-channel analog input and multi-functional output, provide isolated power supply for transmitters in a hazardous area and transfer 4~20mA current signal generated by the transmitter or the current source from hazardous area to a safe area.


This IS barrier type also provides one channel RS-485 output based on MODBUS-RTU protocol and two channels relay output. The RS485 interface can be connected with rail and the power supply can be connected with rail or terminals.

Advantages of GS8200-EX Analogue To RS485 Intrinsic Safety Barrier

  • Input state monitoring

  • Relay output

  • RS485 communication

  • Flexible power mode

  • Easy to configure

Parameter of GS8200-EX Analogue To RS485 Intrinsic Safety Barrier


1/4:GS8247-EX.AMR1/3:GS8247-EX.MR1/3:GS8247-EX.AR1/2:GS8247-EX.AM
Supply Voltage20~35V DC20~35V DC20~35V DC20~35V DC
Current Consumption≤80mA≤70mA≤80mA≤70mA
Input signal4~20mA4~20mA4~20mA4~20mA
Power Distribution15.5V/20mA15.5V/20mA15.5V/20mA15.5V/20mA
Output Signal4~20mARS485 Output/Relay output4~20mA4~20mA
RS-485 OutputInvolveInvolve-Involve
Relay alarm outputInvolveInvolveInvolve-
Ambient Temperature-20℃~+60℃-20℃~+60℃-20℃~+60℃-20℃~+60℃
WeightApprox.150gApprox.150gApprox.150gApprox.150g

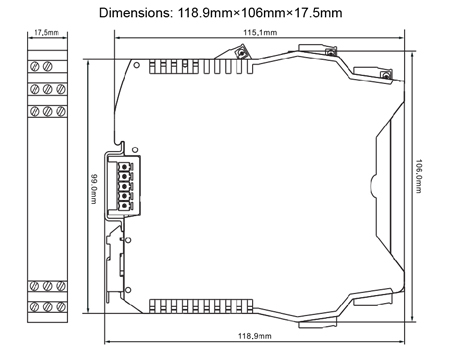

Dimensions of GS8200-EX Analogue To RS485 Intrinsic Safety Barrier


Intrinsically Safe Isolator

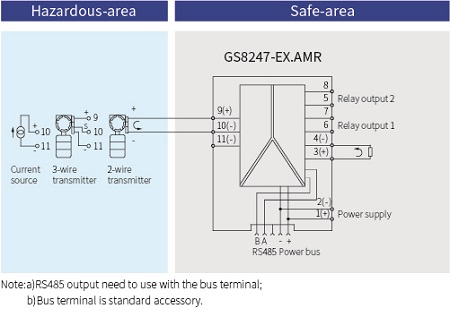

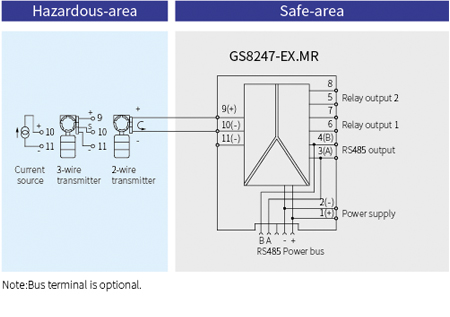

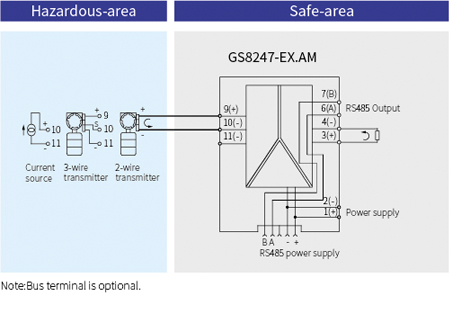

Typical Applications of GS8200-EX Analogue To RS485 Intrinsic Safety Barrier


GS8200-EX Analogue To RS485 Isolated Barriers for Hazardous Areas   GS8200-EX Analogue To RS485 Isolation Barrier

GS8200-EX Analogue To RS485 Intrinsically Safe Isolators   GS8200-EX Analogue To RS485 Isolator Barrier
