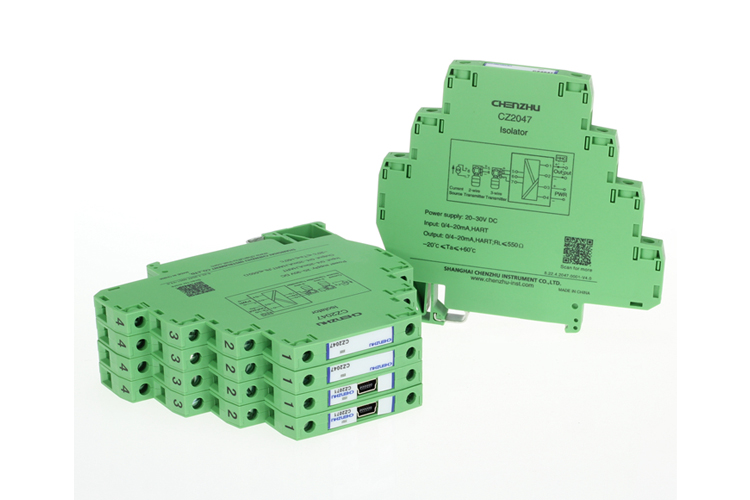

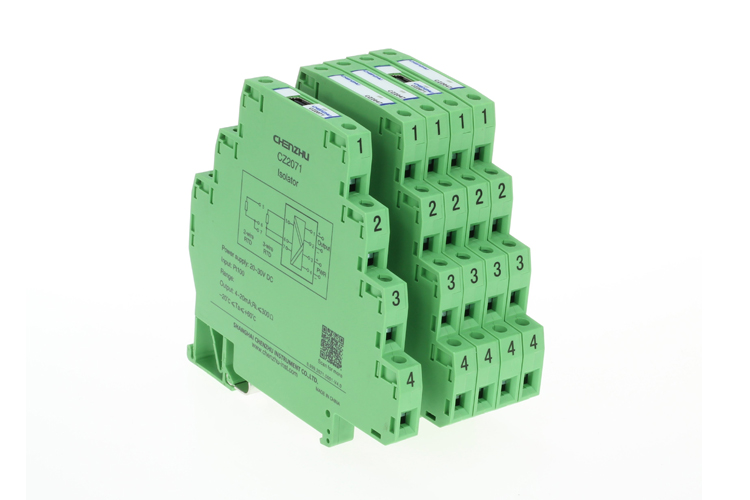

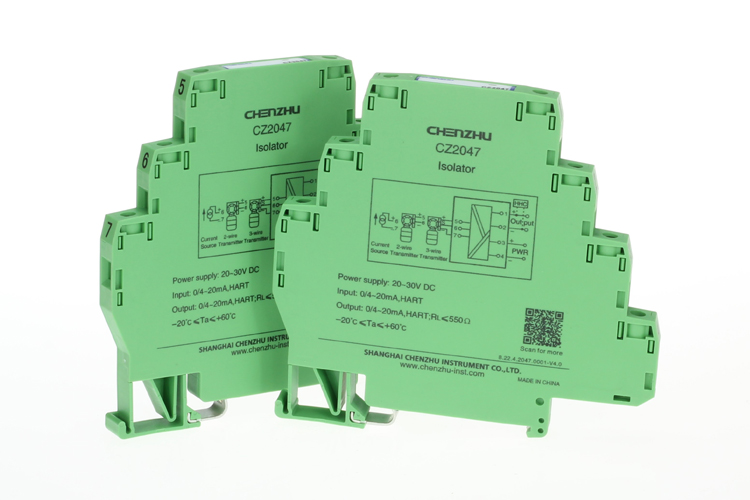

CZ2000 Analogue Signal Conditioner Loop Power

7.6 mm thin shell, save installation space, passive signal isolation, without the need for a separate power supply. Low power consumption 0.1 W, save energy.

Advantages of CZ2000 Analogue Signal Conditioner Loop Power

  • 1-channel signal conditoner

  • 24V DC supply/24V DC loop powered signal conditioning unit

  • Line fault detection(LFD)

  • Support HART communication

  • Configurable by software

  • Ultra-slim housing width 7.6mm

Parameter of CZ2000 Analogue Signal Conditioner Loop Power


CZ2031

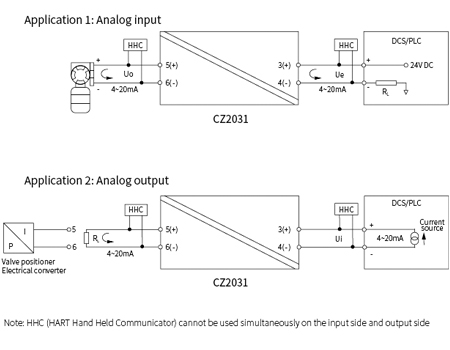

Application 1: Analog Input
CZ2031
Application 2: Analog Output
Input Current4~20mA(HART)4~20mA(HART)
Distribution VoltageUo≥Ue-RL×0.02-6
Loop Current≤25mA≤25mA
Output Current4~20mA(HART)4~20mA(HART)
Load ResistanceRL≥250Ω(HART)RL ≤(Ui -6)/ 0.02
Loop Current≤25mA≤25mA
Loop Supply Voltage(Ue)20~30V DC20~30V DC
Power Reverse ProtectionSupportSupport
Transmission Accuracy0.4%F.S.0.3%F.S.
Temperature Drift0.01%F.S./℃0.01%F.S./℃
Response Time (0~90%)≤0.5 ms≤0.5 ms
Dielectric Strength1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ; 500V DC≥100MΩ; 500V DC
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃
Suitable Field Apparatus2-wire transmitter2-wire transmitter

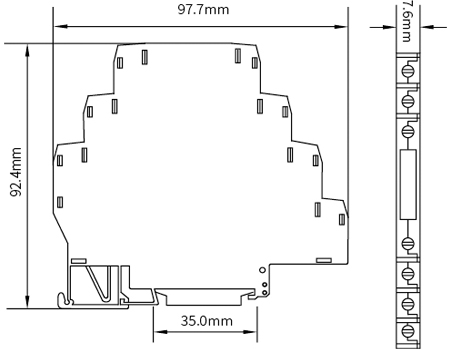

Dimensions of CZ2000 Analogue Signal Conditioner Loop Power


CZ2000 Analogue Signal Conditioner Loop Power


Typical Applications of CZ2000 Analogue Signal Conditioner Loop Power


CZ2000 Analogue Signal Conditioner Loop Power
