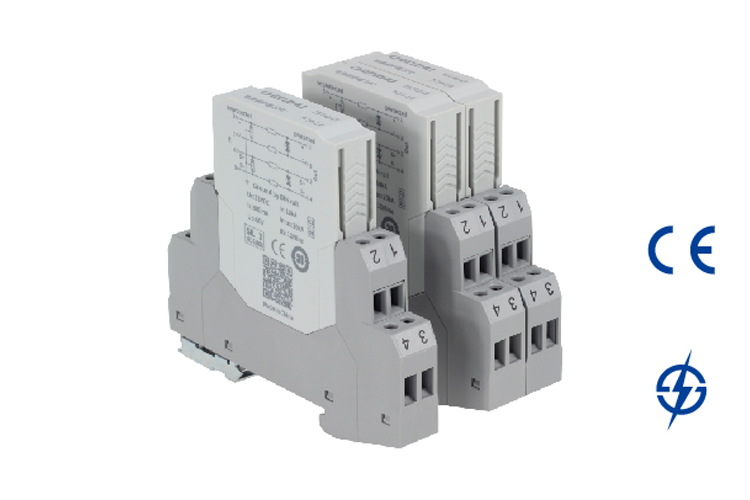

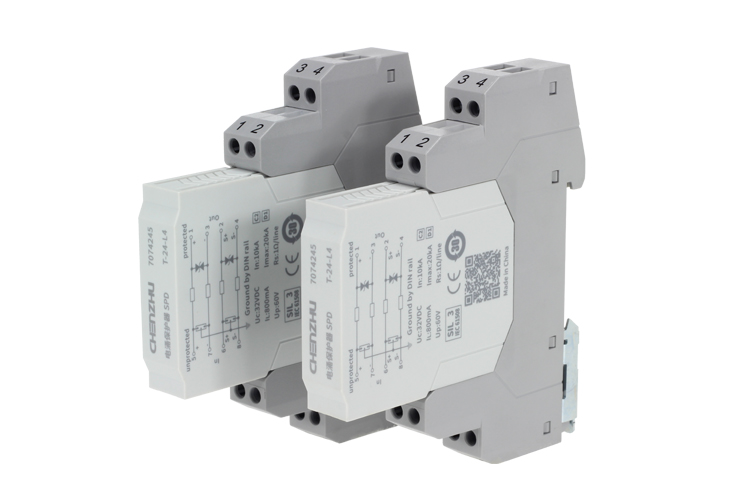

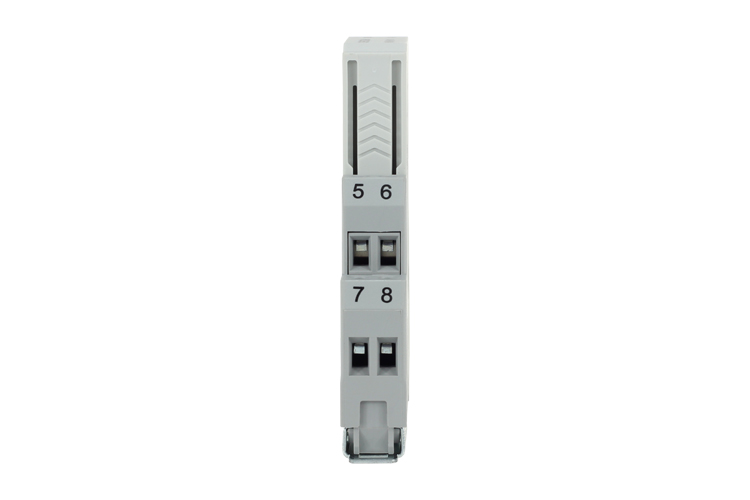

24VDC 10kA Low Power SPD

SPD for low power supply; IL:10A; C2: 20kV/10kA, D1: 2.5kA/line; 24VDC; hot-pluggable; grounded through DIN rail

Features & Advantages of 24VDC 10kA Low Power SPD

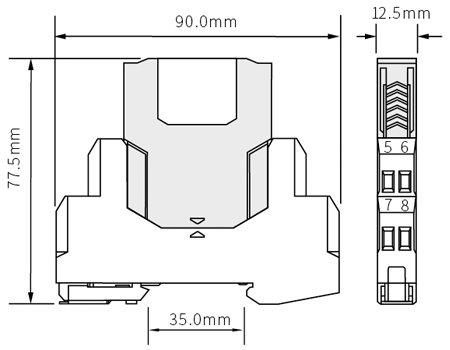

  • 12.5mm ultra-thin design.

  • Hot pluggable.

  • SPD surge protection system can be tested individually.

  • Suitable for power supply, solenoid valve and etc.

  • Ground via DIN 35mm rail.

Parameter of 24VDC 10kA Low Power SPD


T-24
Nominal operating voltage Un24V DC
Max. continuous operating voltage Uc60V DC
Nominal operating current IL10A
Nominal discharge current In(8/20µs)L-G: 10kA
Max. discharge current Imax(8/20µs)L-G: 20kA
Impulse current Iimp(10/350µs)L-G: 2kA
Total impulse current(10/350µs)L-G: 4kA
Voltage protection level Up(8/20µs)800V
Voltage protection level Up(1kV/μs)600V
Residual current IPE<10μA
Response time10ns
Housing protection grade(IEC60529)IP 20
Housing material/inflammability rating(UL94)PA66/V0
Testing standardIEC 61643-11

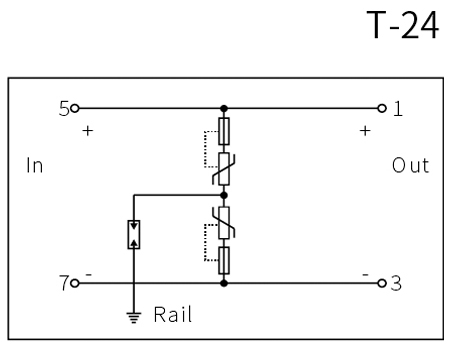

Schematic Diagram of 24VDC 10kA Low Power SPD


24VDC 10kA Low Power SPD24VDC 10kA Low Power SPD

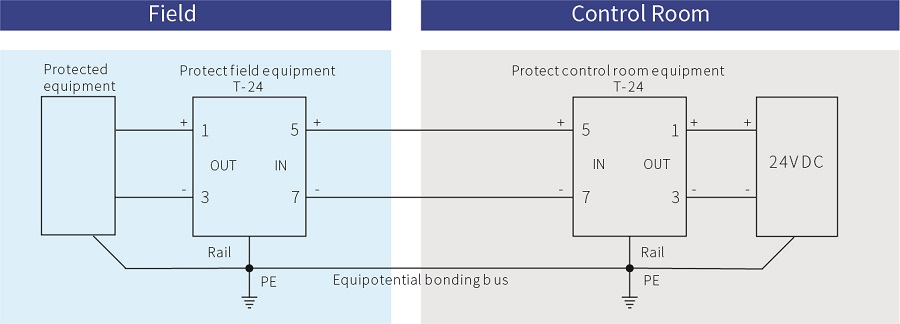

Typical Applications of 24VDC 10kA Low Power SPD


24VDC 10kA Low Power SPD
