Electronic devices are always threatened by power surges and transients caused by power failures or nearby lightning strikes.

Signal SPD surge protection device is born to protect electronic devices in automatic control systems.

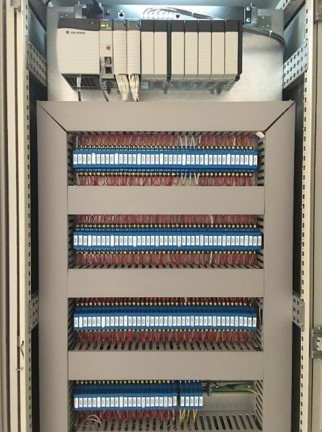

The surge protection equipment can provide surge protection for field equipments such as sensors, transmitters, flow meters, solenoid valves, thermocouples, thermal resistance, devices with RS485 or RS232 interface and for I/O interfaces such as Al, AO, Dl, DO, Tl, Pl in PLC, DCS, FGS, ESD control systems.

Signal data surge protector is widely used in petrochemical, gas, environmental protection and new energy industries.

Chenzhu also provides signal surge arrester equipment in intrinsical safety circuits that meet the same design and structural standards as intrinsic safety equipment, which requires certification and approval of them.

Advantages of Signal SPD

  • Innovatively patented technology

      -Contact point gold plated and Max. discharge current is up to 20kA/line.

      -Grounding is realized through a reliable four-point connection between the rail and the buckle.

      -Surge protective modules are pluggable which can be replaced conveniently online without disconnecting the circuit.

      -Suitable for harsh environments such as offshore wind turbines, outdoor control systems, on site instruments and etc; passed multiple tests such as 96h salt spray, -2g vibration, Flame retardant grade: V0

  • Space and costs saved

      -A 4-wire product can be used to protect  2-wire loops.

      -Grounded together via DIN rail, no individual grounding needed.

  • Rely on safety technical standards

    - International certification

    - Invention patent

    - Laboratory authorized by TÜV Rheinland group

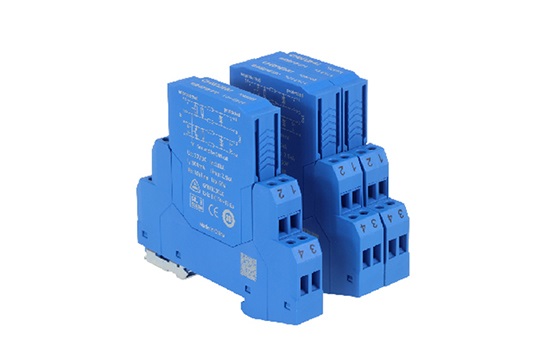

Signal Surge Protector Features

  • 12.5mm 2-channel ultra thin design

  • IP20 Housing protection grade

  • Ground via DIN 35mm rail

  • 2,3,4 Wires Available

  • Hot Pluggable

  • C2 D1

  • Response time: 1 ns

  • SIL 3 Functional Safety Certification

Signal SPD Application

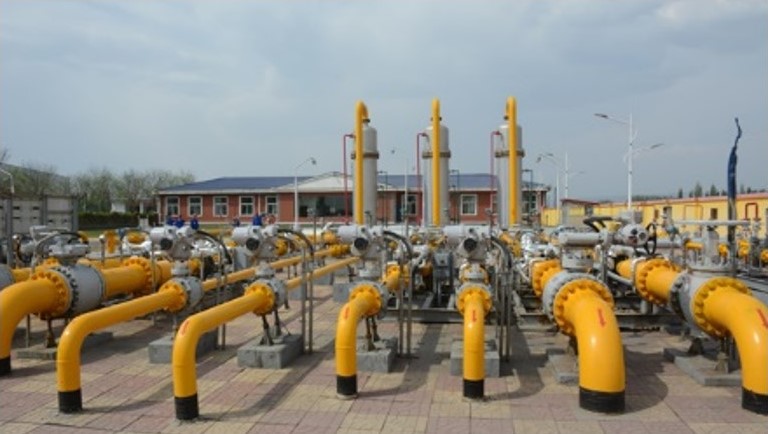

In the petroleum and petrochemical industry, signal SPDs are used to protect data transmission lines and measurement equipment from voltage fluctuations and electromagnetic interference, preventing equipment failures and inaccurate data. By installing signal SPDs, stable and reliable data transmission and control signals are ensured across all production stages from oil wells to refineries, reducing maintenance costs and enhancing production efficiency.



FAQ of Signal SPD


How do I choose a signal SPD?


CHENZHU signal surge protector is mounted by DIN rail. It can be selected from informations below.

1. Type of the signal

According to the signal type, we can get the information of the signal voltage, so as to determine Uc.

For example, normally,

AI,AO: 24V,

DI,DO: 24V,

RS485, TC:5V,



2. Rated current IL

Since SPD for signal is normally installed in range, operating current will go through SPD. If operating current is bigger than IL of SPD, SPD will be damaged. Normally IL will be big enough. For 3-wire, 4-wire carrier current transmitters and DO signals which have higher power consumption, IL need to be checked.

3.  Number of wires to be protected

Select 2 wires, 3 wires, 4 wires accordingly.

4.  Is intrinsically safe explosion-proof required?

Yes——select intrinsically safe SPD;

No——select non intrinsic safety SPD.


How to judge if SPD is functional?


Signal surge protection device protected the devices by discharging current to the ground. One-time strike will not damage SPD unless SPD is chosen incorrectly.

Power supply SPD is equipped with disconnector. If SPD fails, it will indicate through the indication window. SPD disconnector will not trip when it discharges lightning current. It is used to avoid fire hazardous caused by continuous fault current flowing through SPD when SPD is degraded.

For signal SPD, one of signal conditioning types, the risk of fire is small, so it is not required to set a disconnector. Normally, special lightning protection testing devices need to be used for off-line tests. Nowadays, with the technology development, the status indication function of signal SPD is becoming popular, so it’s also possible to judge by status indication.
