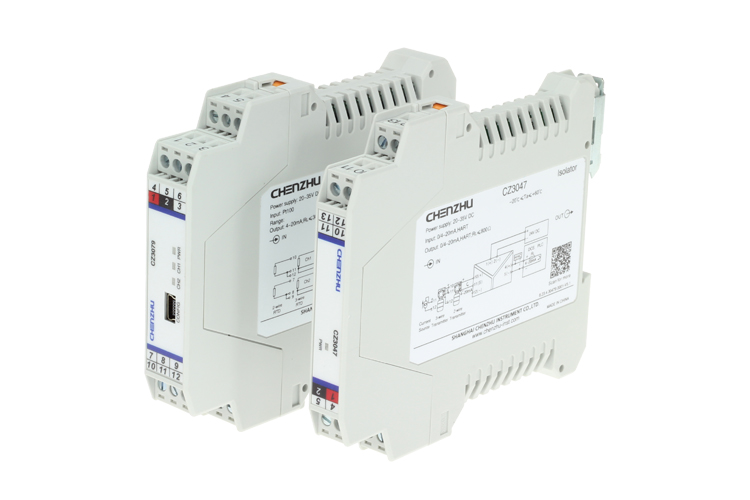

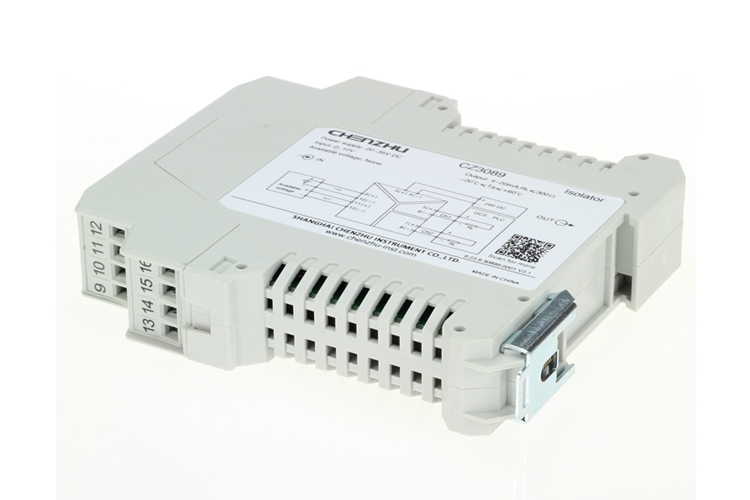

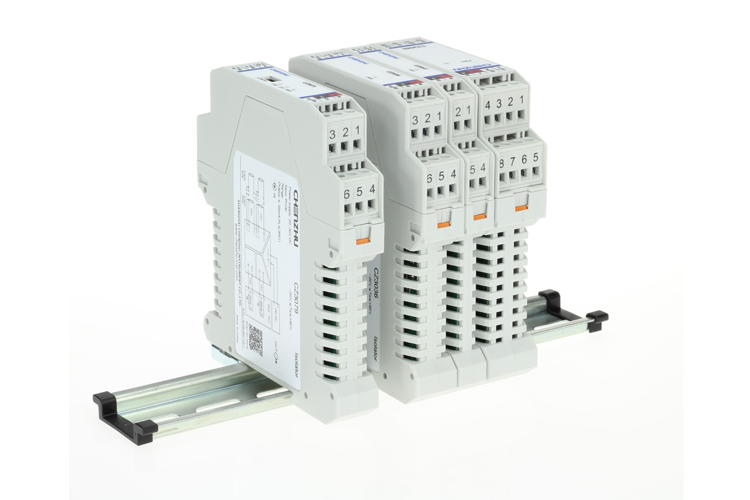

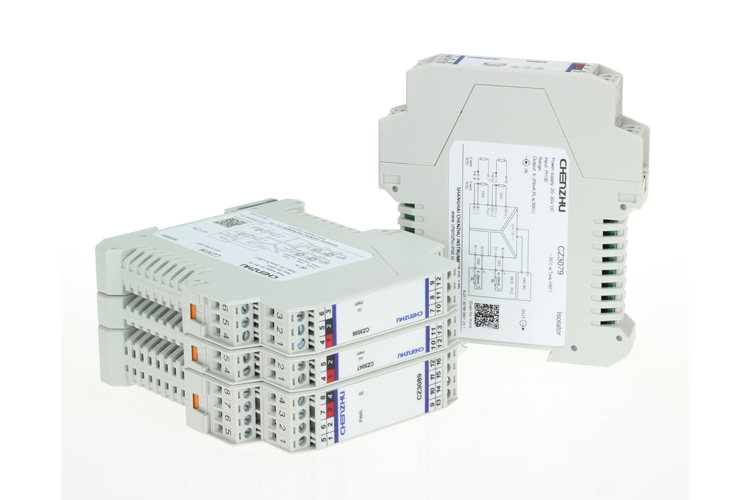

CZ3000 Pulse Input Signal Conditioner

Pulse voltage input signal conditioners transfer the pulse voltage signal and provide isolated power supply for field instruments. The input adopts hysteresis comparison circuit and has high anti-interference performance. It has two output way: pulse voltage output and transistor output.


This 5v to 24v plc signal converter needs an independent power supply and galvanic isolation among power supply, input and output.

Advantages of CZ3000 Pulse Input Signal Conditioner

  • 24V DC independent power supply

  • PNP/NPN transistor output or voltage pulse output

Parameter of CZ3000 Pulse Input Signal Conditioner


CZ3051
1/1
CZ3052
2/2
CZ3053
1/2
Frequency Range≤10kHz,Duty cycle≥30%≤10kHz,Duty cycle≥30%≤10kHz,Duty cycle≥30%
Pulse Voltage Level4V≤VH≤12V,VL≤1V4V≤VH≤12V,VL≤1V4V≤VH≤12V,VL≤1V
Distribution Voltage(Specify when ordering)No power distribution
5V or 12V or 24V@20mA
No power distribution
5V or 12V or 24V@20mA
No power distribution
5V or 12V or 24V@20mA
External Supply Voltage Vcc (Transistor output)≤35V DC≤35V DC≤35V DC
Max.on-stage Current(Transistor output)≤35mA≤35mA≤35mA
Transistor Collector OutputVH:Vcc,VL :≤2.5VVH:Vcc,VL :≤2.5VVH:Vcc,VL :≤2.5V
Pull-up Resistance2kΩ≤RL ≤20kΩ2kΩ≤RL ≤20kΩ2kΩ≤RL ≤20kΩ
Transistor Emitter OutputVH:Vcc-2.5V,VL :≤0.5VVH:Vcc-2.5V,VL :≤0.5VVH:Vcc-2.5V,VL :≤0.5V
Pull-down Resistance2kΩ≤RL ≤10kΩ2kΩ≤RL ≤10kΩ2kΩ≤RL ≤10kΩ
Voltage Pulse OutputVH:4.5V≤VH≤24V,VL :≤0.5VVH:4.5V≤VH≤24V,VL :≤0.5VVH:4.5V≤VH≤24V,VL :≤0.5V
Load ResistanceRL ≥1kΩRL ≥1kΩRL ≥1kΩ
Supply Voltage20~35V DC20~35V DC20~35V DC
Power Reverse ProtectionSupportSupportSupport
Current Consumption
(Supply voltage:24V, no power distribution)
≤30mA≤55mA≤50mA
Dielectric Strength1500V AC;1min1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ≥100MΩ≥100MΩ
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃-20℃~+60℃
Suitable Field Apparatus2-or 3-wire voltage pulse source2-or 3-wire voltage pulse source2-or 3-wire voltage pulse source


Dimensions of CZ3000 Pulse Input Signal Conditioner


CZ3000 Pulse Input  Signal Conditioner

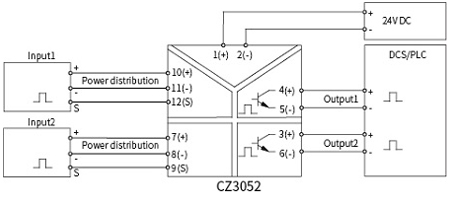

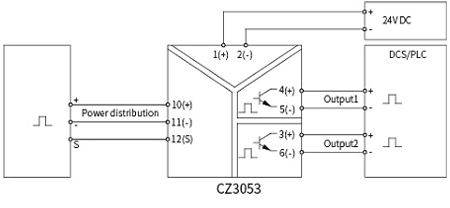

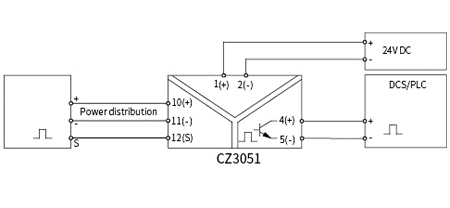

Typical Applications of CZ3000 Pulse Input Signal Conditioner
