Photovoltaic 1000 DC Power SPD

SPD for DC power, 1000VDC; In(8/20us): 20kA/phase, Imax: 40kA/phase; hot-pluggable; fault indication;

Features & Advantages of Photovoltaic 1000 DC Power SPD

  • Status indication:

    Green: OK

    Red: Failed

  • DC power surge protector modules can be replaced online.

  • Remote alarm output is optional, named with "F".

  • It is normally installed at the boundary of LPZ1 and LPZ2 or subsequent LPZs.

Parameter of Photovoltaic 1000 DC Power SPD


T2-1000
T2-1000F
Max. continuous operating voltage Ucpv1000VDC
Short-circuit current rating Iscpv1000A
Nominal discharge current In(8/20µs)20kA
Max. discharge current Imax(8/20µs)40kA
Voltage protection level Up4kV
Recommended backup fuse80A gG
Recommended grounding cable6~35mm2
Response time25ns
Residual current IPE<10μA
Remote alarm output250VAC/0.5A;24VDC/0.5A
Housing protection grade(IEC60529)IP 20
Housing material/inflammability rating(UL94)PA66/V0
Testing standardIEC 61643-31

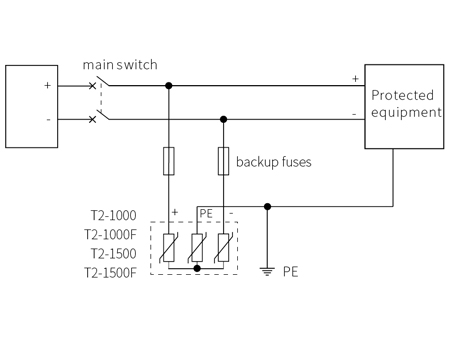

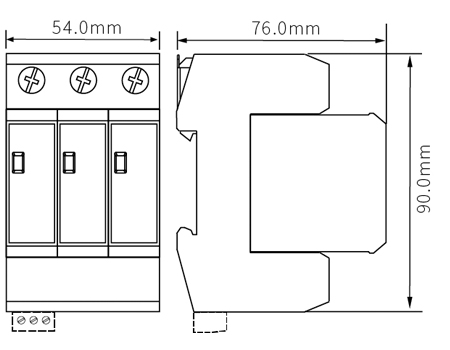

Schematic Diagram of Photovoltaic 1000 DC Power SPD
