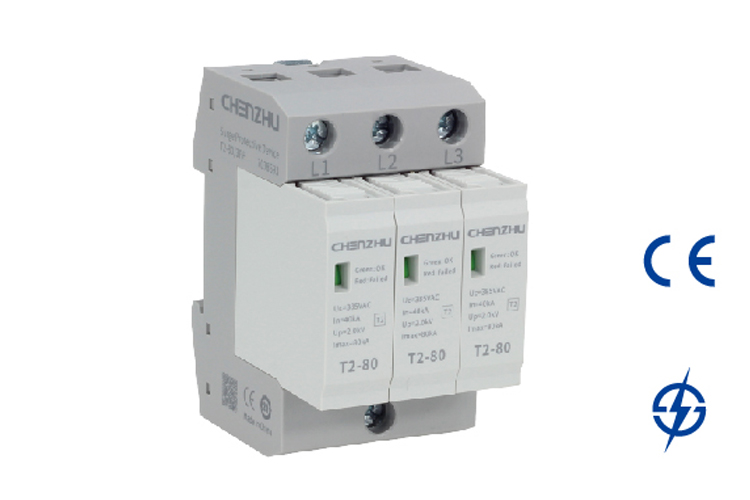

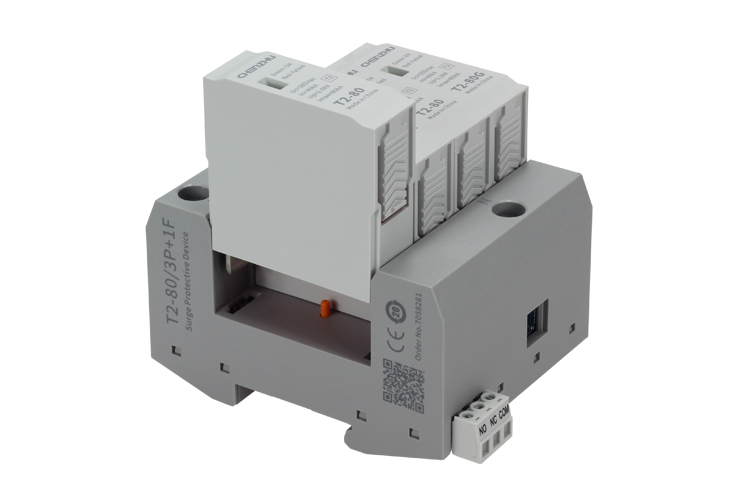

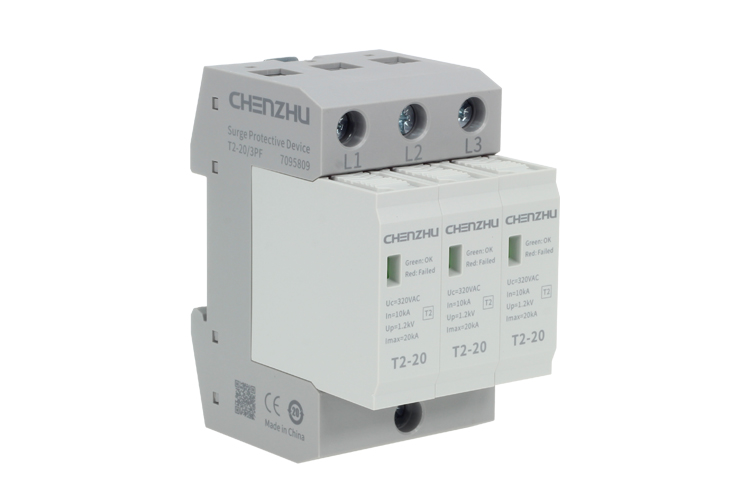

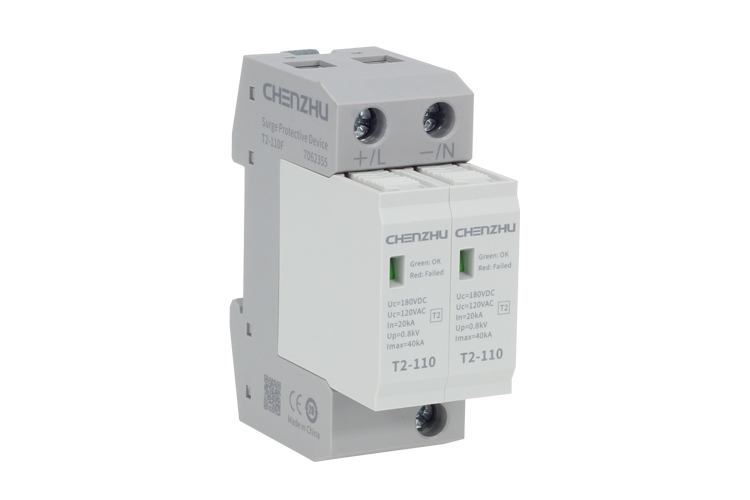

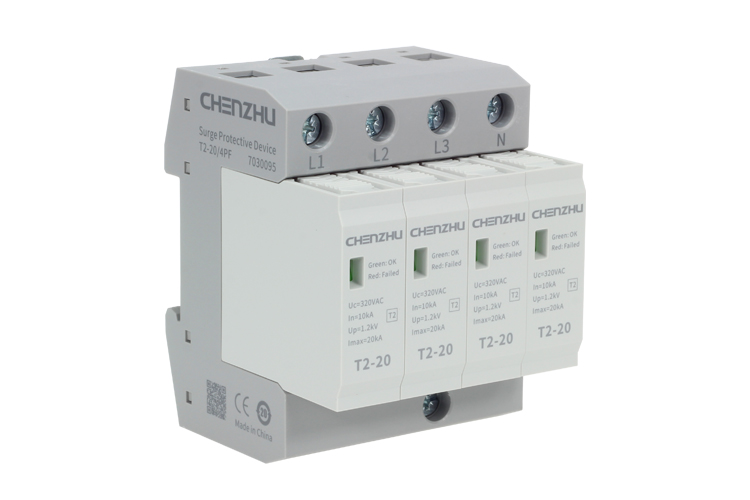

80KA AC Power SPD

SPD for AC power; 220VAC, TN system, Single phase; In(8/20us): 20kA/phase, Imax: 80kA/phase; hot-pluggable; fault indication

Features & Advantages of 80KA AC Power SPD

  • Status indication:

    Green: OK

    Red: Failed

  • Lightning proof surge protector modules can be replaced online.

  • Remote alarm output is optional, named with "F".

  • It is normally installed at the boundary of LPZ1 and LPZ2 or subsequent LPZs.

Parameter of 80KA AC Power SPD


T2-80/2P
T2-80/2PF
T2-80/3P
T2-80/3PF
T2-80/4P
T2-80/4PF
T2-80/1P+1
T2-80/1P+1F
T2-80/3P+1
T2-80/3P+1F
Max. continuous operating voltage Uc385VAC385VAC385VAC385VAC385VAC
Nominal discharge current In(8/20µs)40kA40kA40kA40kA40kA
Max. discharge current Imax(8/20µs)80kA80kA80kA80kA80kA
Voltage protection level Up2.0kV2.0kV2.0kV2.0kV2.0kV
Recommended backup fuse125A gG125A gG125A gG125A gG125A gG
Recommended grounding cable6~35mm26~35mm26~35mm26~35mm26~35mm2
Response time25ns25ns25ns25ns25ns
Residual current IPE<10μA<10μA<10μA<10μA<10μA
Remote alarm output250VAC/0.5A;24VDC/0.5A250VAC/0.5A;24VDC/0.5A250VAC/0.5A;24VDC/0.5A250VAC/0.5A;24VDC/0.5A250VAC/0.5A;24VDC/0.5A
Housing protection grade(IEC60529)IP 20IP 20IP 20IP 20IP 20
Housing material/inflammability rating(UL94)PA66/V0PA66/V0PA66/V0PA66/V0PA66/V0
Testing standardIEC 61643-11IEC 61643-11IEC 61643-11IEC 61643-11IEC 61643-11
Suitable for power supply systemTN system(single phase)IT,TN-C system(three phase)TN-S system(three phase)TN system(single phase)TTsystem(three phase)

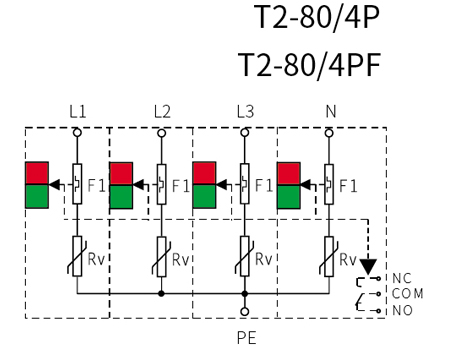

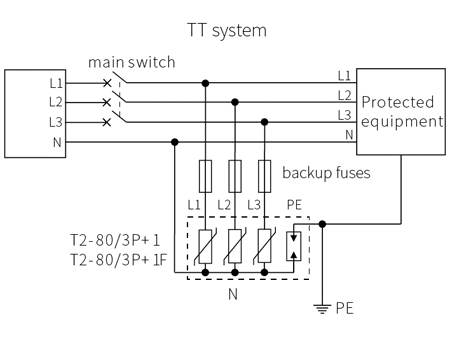

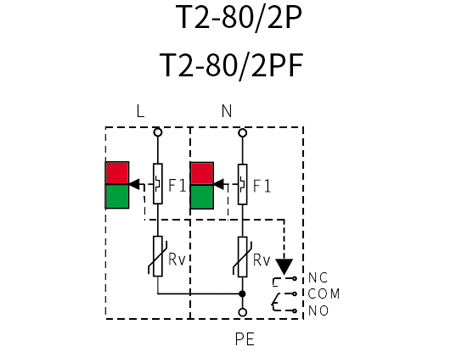

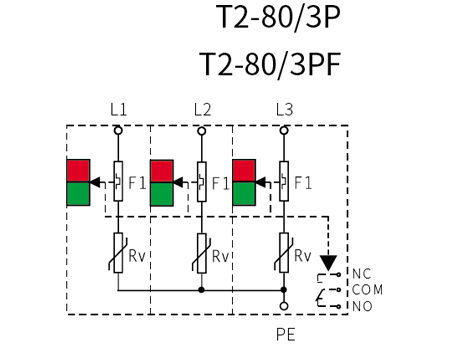

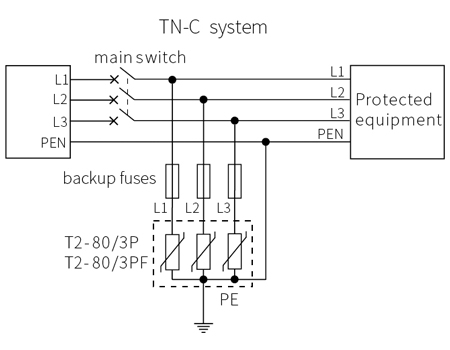

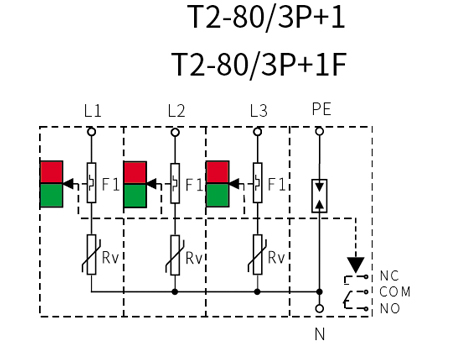

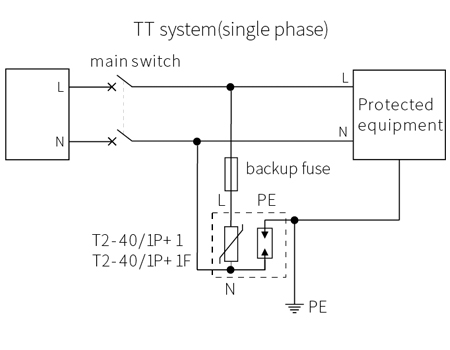

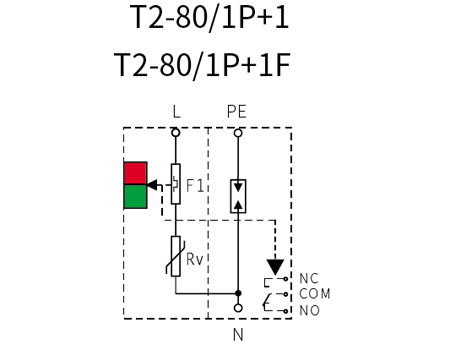

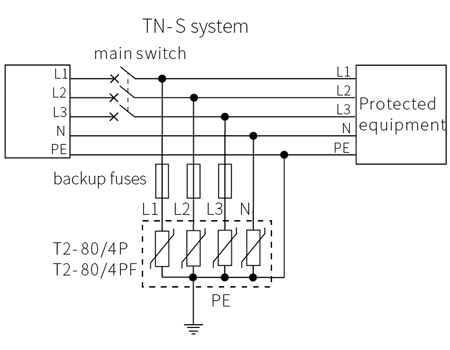

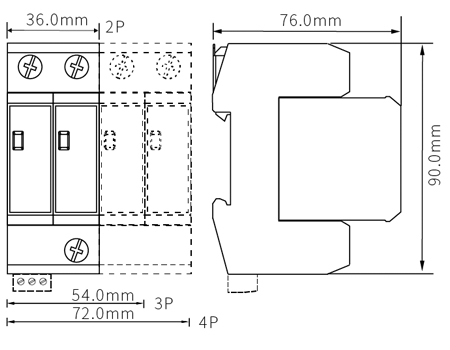

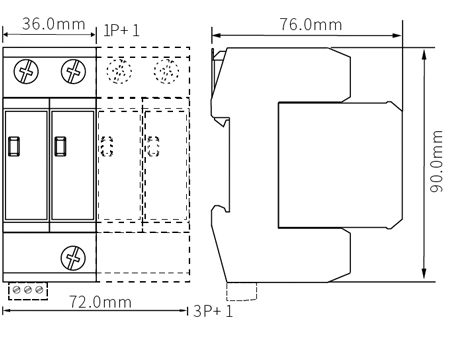

Schematic Diagram of 80KA AC Power SPD


80KA AC Power Surge Protection Device80KA AC Surge Protection Device
