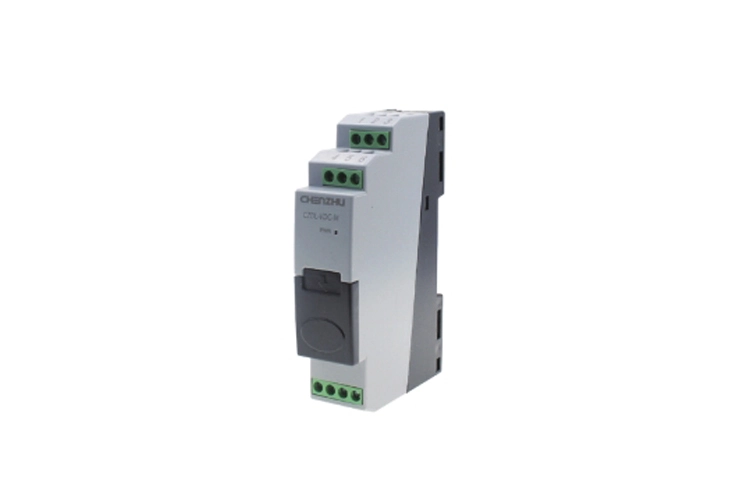

CZDL Series DC Current Power Transmitter

Name: CZDL Series DC Current Power Transmitter
Brand: Shanghai Chenzhu Instrument CO., LTD.
Price: 100 USD

DC current transmitter: converts DC current input in the range of 0 to 10A into an industrial standard signal output. The product is powered by a 20-30V DC power supply, with isolation among input, output, and power supply.

 Send Mail

Specification of CZDL Series DC Current Power Transmitter

Model	CZDL-IDC-M2	CZDL-IDC-M5	CZDL-IDC-M10
Input
Input current range(In)	0~2A	0~5A	0~10A
Max . input current(Imax)	1.2×In ( Long term )；2×In ( ≥1 Min )	1.2×In ( Long term )；2×In ( ≥1 Min )	1.2×In ( Long term )；2×In ( ≥1 Min )
Input current range(In)
Current input impedance	30mΩ ( CZDL-IDC-M2 )	4mΩ ( CZDL-IDC-M5 )	2mΩ ( CZDL-IDC-M10 )
Remark （Customization available on request, including transmitter power supply options.）	The customer needs to specify the input current range when placing an order.	The customer needs to specify the input current range when placing an order.	The customer needs to specify the input current range when placing an order.
Output
Current output	0~20mA/4~20mA	0~20mA/4~20mA	0~20mA/4~20mA
Max . output current	≤22mA	≤22mA	≤22mA
Load resistance	≤300Ω	≤300Ω	≤300Ω
Voltage output	0~10V/0~5V/1~5V	0~10V/0~5V/1~5V	0~10V/0~5V/1~5V
Max . output voltage	≤11V ( 0~10V Output range )	≤11V ( 0~10V Output range )	≤11V ( 0~10V Output range )
Max . output voltage	≤6V ( 0~5V/1~5V Output range )	≤6V ( 0~5V/1~5V Output range )	≤6V ( 0~5V/1~5V Output range )
Load resistance	≥10kΩ	≥10kΩ	≥10kΩ
Remark	The customer needs to specify the output voltage or output current when placing an order.	The customer needs to specify the output voltage or output current when placing an order.	The customer needs to specify the output voltage or output current when placing an order.
Parameter
Supply voltage	20V~30V DC	20V~30V DC	20V~30V DC
Rated power consumption	Current Output≤55mA ( Powered by 24V DC，20mA Output )	Current Output≤55mA ( Powered by 24V DC，20mA Output )	Current Output≤55mA ( Powered by 24V DC，20mA Output )
Rated power consumption	Voltage Output≤35mA ( Powered by 24V DC，10V Output )	Voltage Output≤35mA ( Powered by 24V DC，10V Output )	Voltage Output≤35mA ( Powered by 24V DC，10V Output )
Transfer accuracy	0.1%F.S	0.1% F.S.	0.2% F.S.
Temperature drift	0.01%F.S./℃	0.01%F.S./℃	0.01%F.S./℃
Response time	200ms reach 90% of final value	200ms reach 90% of final value	200ms reach 90% of final value
Operating temperature	-20℃~+60℃	-20℃~+60℃	-20℃~+60℃
Storage temperature	-40℃~+80℃	-40℃~+80℃	-40℃~+80℃
Relative humidity	10%~90%	10%~90%	10%~90%
Pollution degree	3	3	3
EMC	GB/T 18268	GB/T 18268	GB/T 18268
Safety parameters
Insulation performance test standards	GB4793.1	GB4793.1	GB4793.1
Dielectric strength (input-output, power)	2500V AC,50Hz,1min	2500V AC,50Hz,1min	2500V AC,50Hz,1min
Dielectric strength (power-output)	1500V AC,50Hz,1min	1500V AC,50Hz,1min	1500V AC,50Hz,1min
Insulation resistance	≥100MΩ	≥100MΩ	≥100MΩ
IP degree (Comply with IEC60529)	IP20	IP20	IP20
