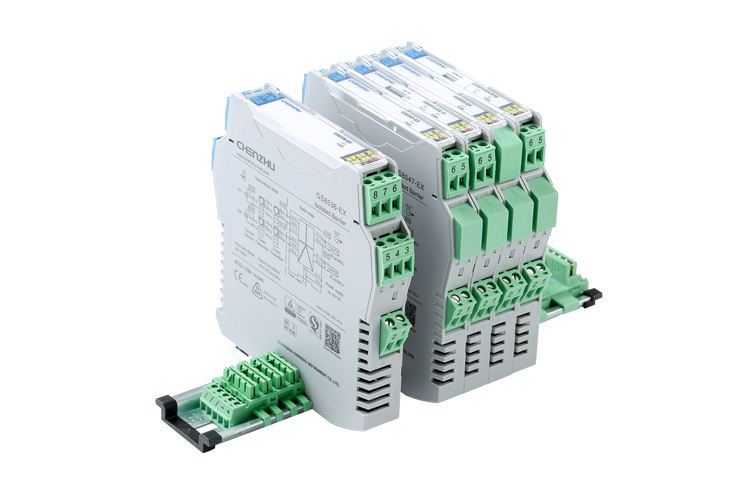

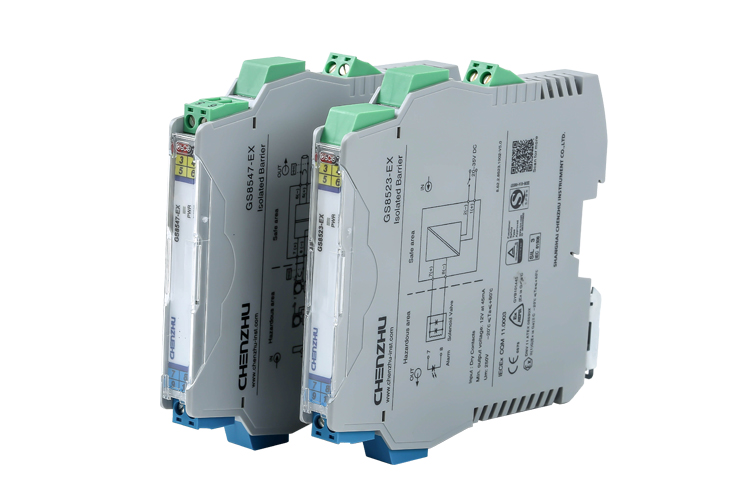

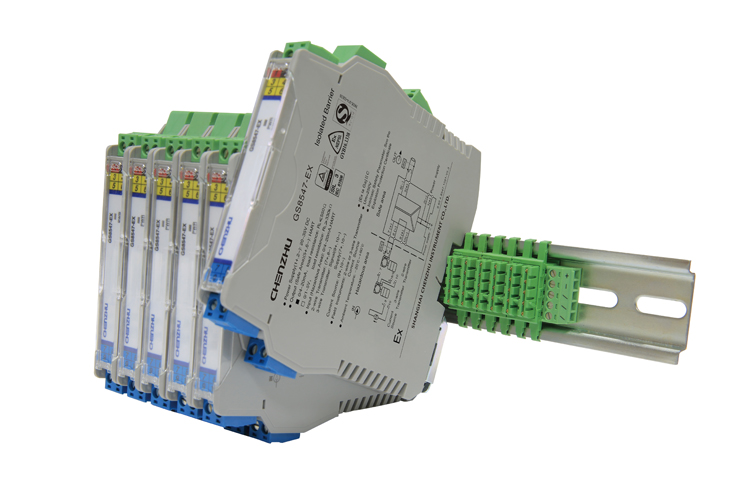

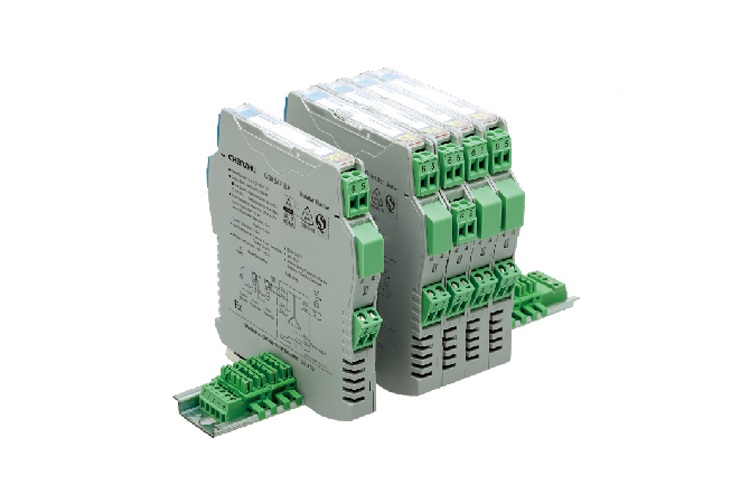

GS8500-EX Analogue Intrinsic Safety Barrier

2-wire (HART) transmitter, 3-wire transmitter, current source input isolated barrier, provide isolated power supplies for transmitters which located in a hazardous area. Transfer 4~20mA signal from hazardous area to safe area.


It also allows bi-directional transmission of HART communication signals. This galvanic isolation barrier needs an independent power supply and galvanic isolation among power supply, input, and output.

Advantages of GS8500-EX Analogue Intrinsic Safety Barrier

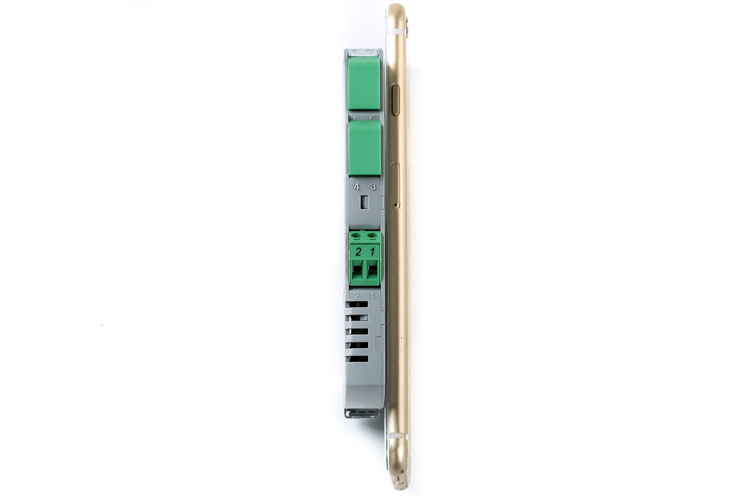

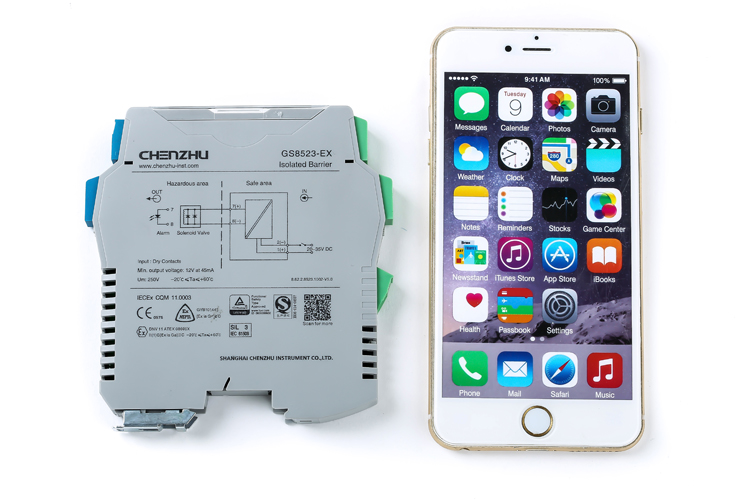

  • Ultra-thin 12.5mm

  • High reliability and precision

  • Strong EMC performance

  • G3 anti-corrosion

  • Flexible power mode

Parameter of GS8500-EX Analogue Intrinsic Safety Barrier


1/2:GS8535-EX2/2:GS8536-EX1/1:GS8547-EX
Supply Voltage20~35V DC20~35V DC20~35V DC
Current Consumption≤75mA≤100mA≤65mA
Input signal0/4~20mA, HART digital signal0/4~20mA, HART digital signal0/4~20mA, HART digital signal
Output signal0/4~20mA, HART digital signal0/4~20mA, HART digital signal0/4~20mA, HART digital signal
Output Accuracy0.1%F.S.(Typical:0.05%F.S.)0.1%F.S.(Typical:0.05%F.S.)0.1%F.S.(Typical:0.05%F.S.)
Temperature Drift0.005%F.S./℃0.005%F.S./℃0.005%F.S./℃
Response Time(0~90%)≤2ms≤2ms≤2ms
Ambient Temperature-20℃~+60℃-20℃~+60℃-20℃~+60℃
WeightApprox. 115gApprox. 135gApprox. 110g



1/1:GS8549-EX1/3:GS8347-EX
Supply Voltage20~35V DC20~35V DC
Current Consumption≤70mA≤100mA
Input signal0/4~20mA, HART digital signal4~20mA
Output signal0/4~20mA, HART digital signal4~20mA;1~5V
Output Accuracy0.1%F.S.(Typical:0.05%F.S.)0.1%F.S.
Temperature Drift0.005%F.S./℃0.005%F.S./℃
Response Time(0~90%)≤2ms≤20ms
Ambient Temperature-20℃~+60℃-20℃~+60℃
WeightApprox. 110gApprox. 350g



1/1:GS8567-EX2/2:GS8568-EX
Supply Voltage20~35V DC20~35V DC
Current Consumption≤55mA≤80mA
Input signal0/4~20mA, HART digital signal0/4~20mA, HART digital signa
Output signal0/4~20mA, HART digital signal0/4~20mA, HART digital signa
Output Accuracy0.1%F.S.0.1%F.S.(Typical: 0.05%F.S.)
Temperature Drift0.005%F.S./℃0.005%F.S./℃
Response Time(0~90%)≤2ms≤2ms
Ambient Temperature-20℃~+60℃-20℃~+60℃
WeightApprox. 100gApprox. 135g

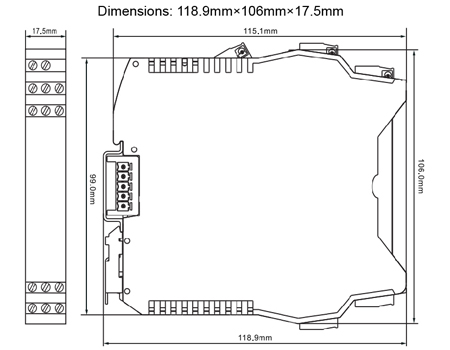

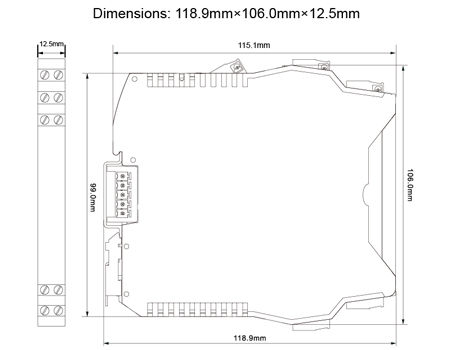

Dimensions of GS8500-EX Analogue Intrinsic Safety Barrier


GS8500-EX Analogue Intrinsic Safety BarrierGS8500-EX Analogue Intrinsic Safety Barrier

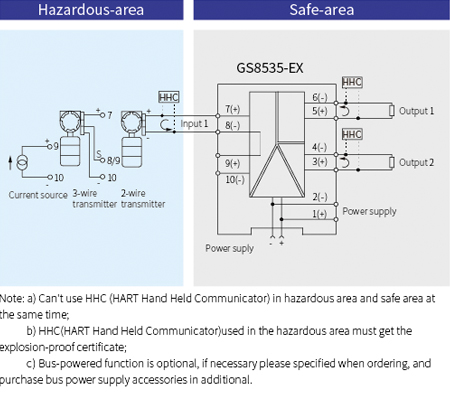

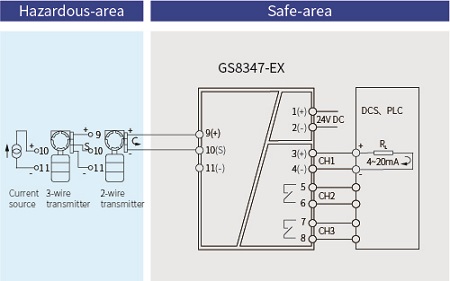

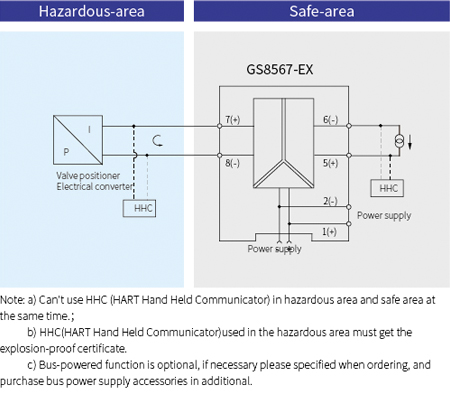

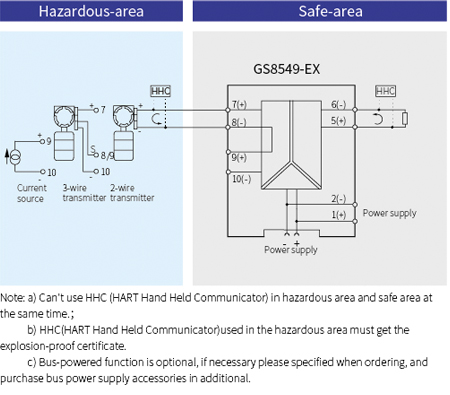

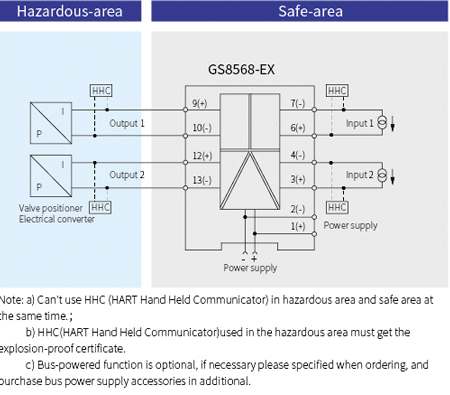

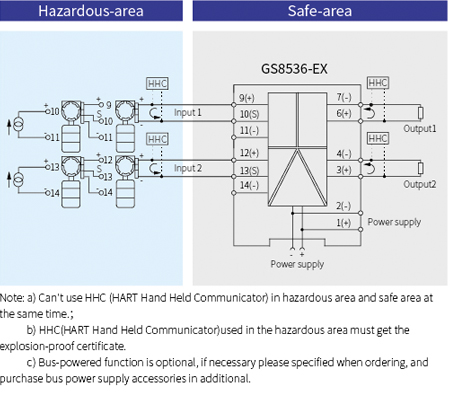

Typical Applications of GS8500-EX Analogue Intrinsic Safety Barrier


GS8500-EX Analogue Intrinsic Safety Barrier   GS8500-EX Analogue Intrinsic Safety Barrier

GS8500-EX Analogue Intrinsic Safety Barrier   GS8500-EX Analogue Intrinsic Safety Barrier

GS8500-EX Analogue Intrinsic Safety Barrier   GS8500-EX Analogue Intrinsic Safety Barrier

GS8500-EX Analogue Intrinsic Safety Barrier
