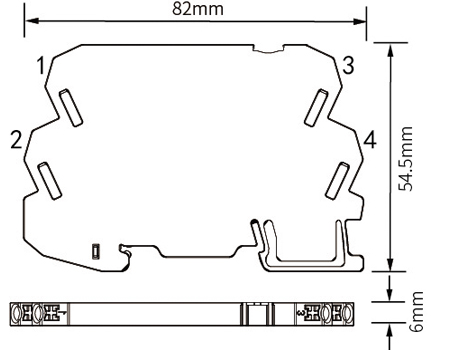

Low-Voltage Power Supply Spd-6mm Width

SPD for low power supply; 24VDC; IL:10A; C2: 20kV/10kA; grounding via the rail directly.

Advatages of Low-voltage power supply SPD-6mm width

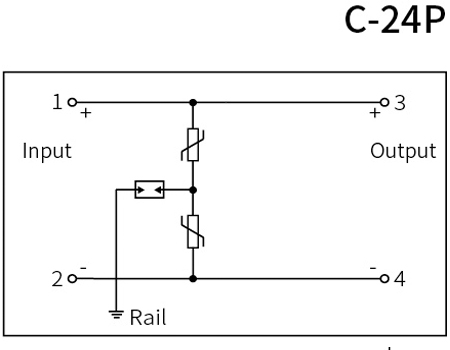

	C-24P
Technical Data	24VDC
Max. Continuous operating voltage Uc	58VDC/40VAC
Nominal operating current IL	10A
Nominal discharge current In ( 8/20μs )	10kA
Max. discharge current Imax ( 8/20μs )	20kA
Impulse discharge current Iimp (10/350μs )	2.5kA
Voltage protection level Up	L-L: 400V/L-G: 600V
Response time	L-L: 25ns/L-G: 100ns
Residual current IPE	<20μA
Degree of protection of enclosure(IEC60529)	IP 20
Housing material/ Flammability rating(UL94)	PA66/V0
Testing standard	GB/T 18802.21/IEC 61643-21
