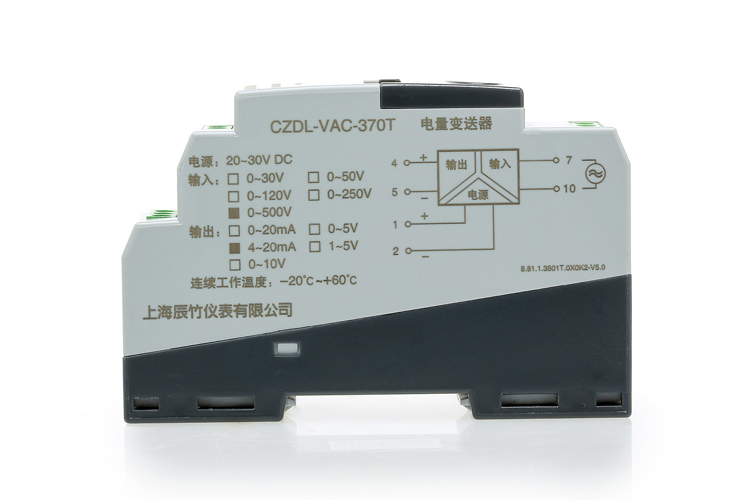

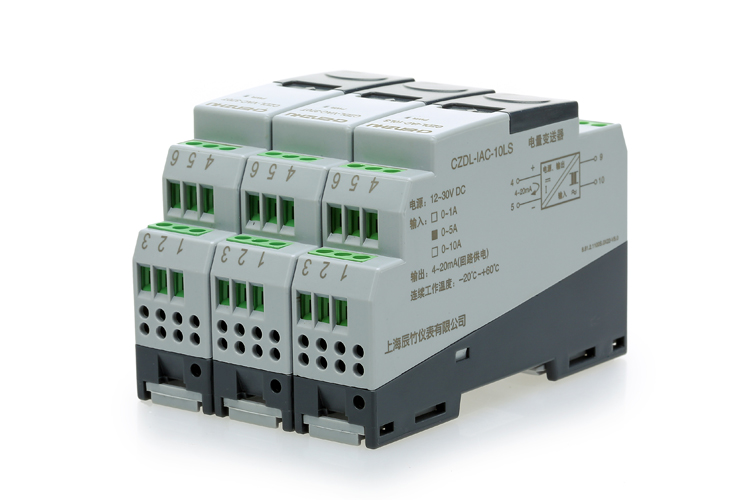

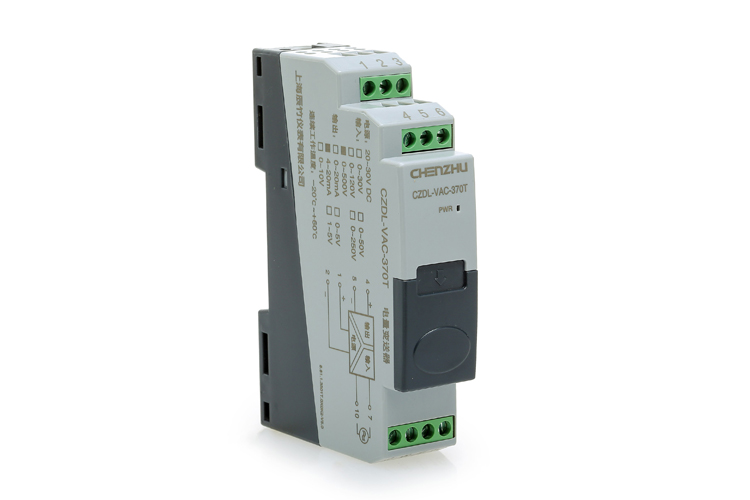

CZDL Series AC/DC Current/Voltage Conver To 4-20ma Power Transmitter

Power transmitter adopts the true RMS detection technology, can transfer complicated current like 0~1A/0~5A/0~10A into industry standard output. We offer DC supply (True RMS) or AC supply for your choice. The product can be used in the detection of the non-sinusoidal current signal, such as switching mode power supply, thyristor output current, etc.


The product needs an independent 24V power supply. Input, output and power supply are each galvanically isolated. Dielectric strength between input side and power, output is 4kV.The low power or high power transmitter adopts DIN35mm rail mounting, compact and convenient for installation on site.

  • CZDL Series AC/DC Current/voltage Conver To 4-20ma Power Transmitter
  • CZDL Series AC/DC Current/voltage Conver To 4-20ma Power Transmitter
  • CZDL Series AC/DC Current/voltage Conver To 4-20ma Power Transmitter
  • CZDL Series AC/DC Current/voltage Conver To 4-20ma Power Transmitter
  • CZDL Series AC/DC Current/voltage Conver To 4-20ma Power Transmitter
  • CZDL Series AC/DC Current/voltage Conver To 4-20ma Power Transmitter

Features & Advantages of CZDL Series AC/DC Current/Voltage Conver To 4-20ma Power Transmitter

  • Well ventilated

  • Flexible power supply

  • Ultra-thin 65.5mm

  • Convenient configuration

  • Easy installation

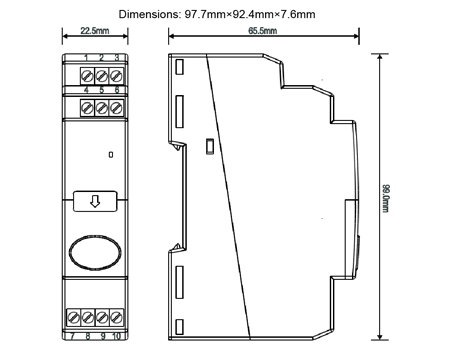

Dimensions of CZDL Series AC/DC Current/Voltage Conver To 4-20ma Power Transmitter


CZDL Series AC/DC Current/Voltage Conver To 4-20ma Power Transmitter

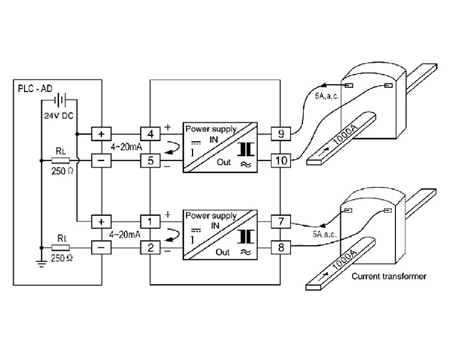

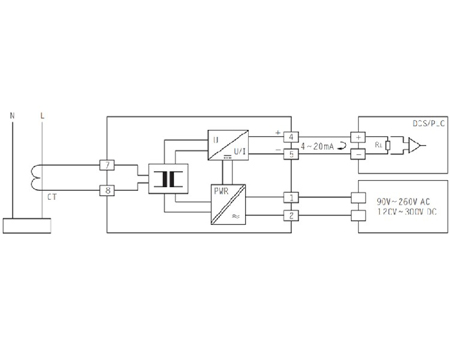

Typical Applications of CZDL Series AC/DC Current/Voltage Conver To 4-20ma Power Transmitter


CZDL Series AC/DC Current/Voltage Conver To 4-20ma Power TransmitterCZDL Series AC/DC Current/Voltage Conver To 4-20ma Power Transmitter
