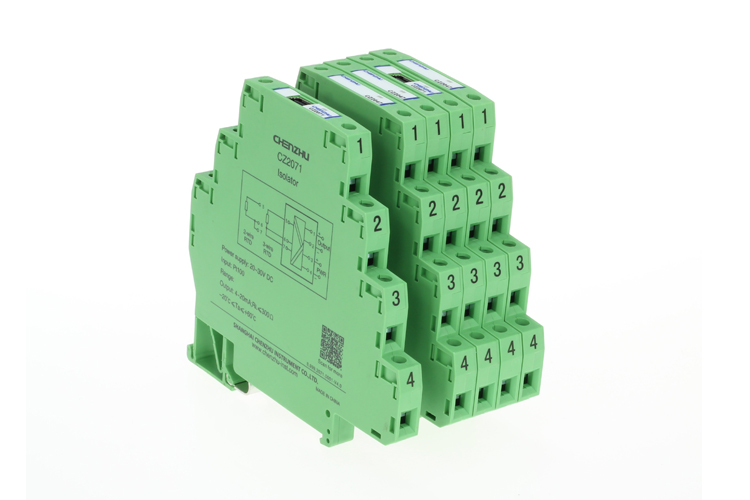

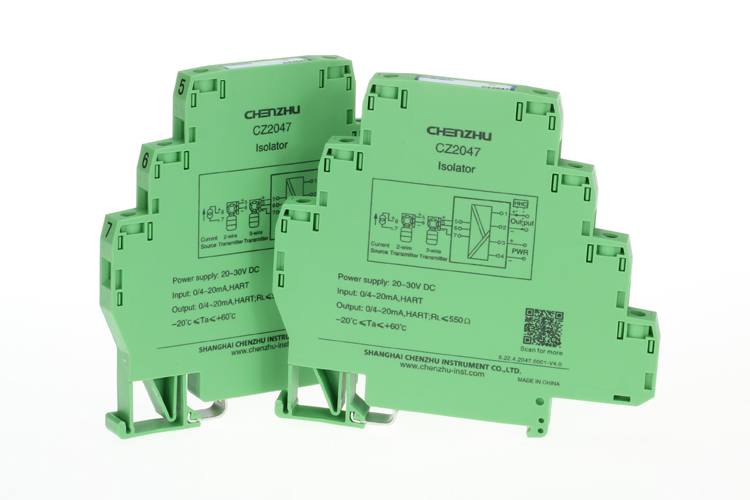

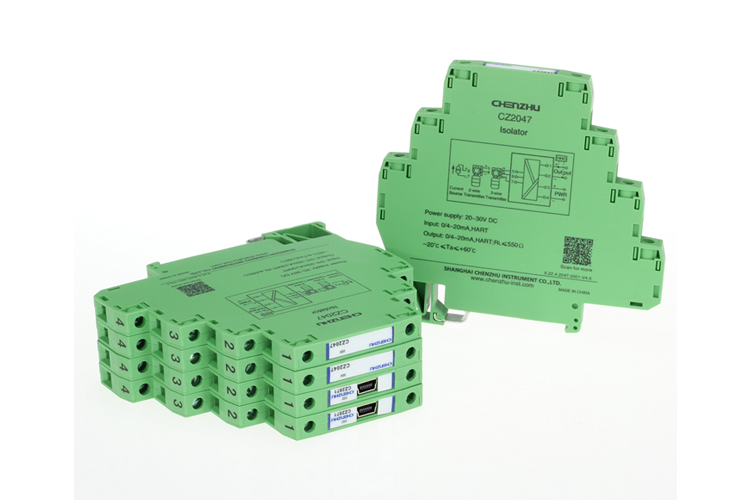

CZ2000 Analogue Signal Conditioner

Analogue input, output isolator, provides isolated power for 2-wire or 3-wire transmitters which located in field. Transfer 0/4~20mA(or current source) which generated by transmitters and output isolatedly, also allows bidirectional transmission of HART communication signals.


This transducer and signal conditioner needs an independent power supply. The power supply, input circuit and output are each galvanically isolated.

Advantages of CZ2000 Analogue Signal Conditioner

  • 1-channel signal conditoner

  • 24V DC supply

  • 0/4~20mA current input/output

  • Ultra-slim housing width 7.6mm

Parameter of CZ2000 Analogue Signal Conditioner



CZ2047
Analog Input
CZ2067
Analog Output
Input Current0/4~20mA0/4~20mA
Distribution Voltage≥19V
Input Voltage Drop
≤2V
Max. Input Current<35mA<35mA
Output Current/Load Resistance0(4)~20mA / RL ≤550Ω0(4)~20mA / RL ≤550Ω
Max. Output Current<35mA<35mA
Output Voltage/Load Resistance0(1)~5V / RL ≥330kΩ0(1)~5V / RL ≥330kΩ
Supply Voltage20~30V DC20~30V DC
Power Reverse ProtectionSupportSupport
Current Consumption(Supply voltage:24V)≤60mA≤60mA
Transmission Accuracy0.1%F.S.(Typical:0.05%F.S.)0.1%F.S.(Typical:0.05%F.S.)
Temperature Drift0.005%F.S./℃0.005%F.S./℃
Response Time (0~90%)≤0.5 ms≤0.5 ms
Dielectric Strength1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ; 500V DC≥100MΩ; 500V DC
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃
Suitable Field Apparatus2-or 3-wire transmitter,current source2-or 3-wire transmitter,current source

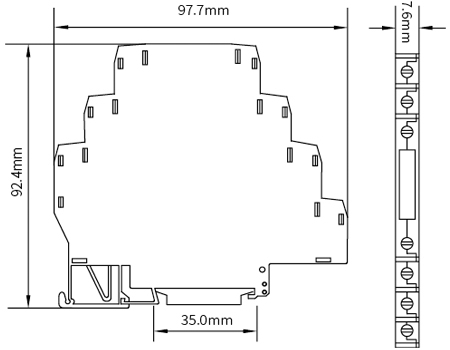

Dimensions of CZ2000 Analogue Signal Conditioner


CZ2000 Analogue Signal Conditioner

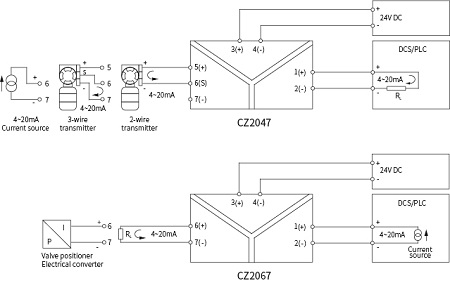

Typical Applications of CZ2000 Analogue Signal Conditioner


CZ2000 Analogue Signal Conditioner
